S52200 10.24KWH Stack-Mounted Lithium Battery

Cycle life：>6,000 Cycles at 90% DOD
Car-grade LiFePo4 battery：Compact, safe, stable, flexible
Consistency of battery cells：Active equalization (3A) Settable charging voltage
Auto-heating function：Heating below 0℃ BMS automatic management
Touch screen：View battery information Set communication protocol and DIP
Intelligent BMS：Wider compatibility;Atuomatic DIP Setting

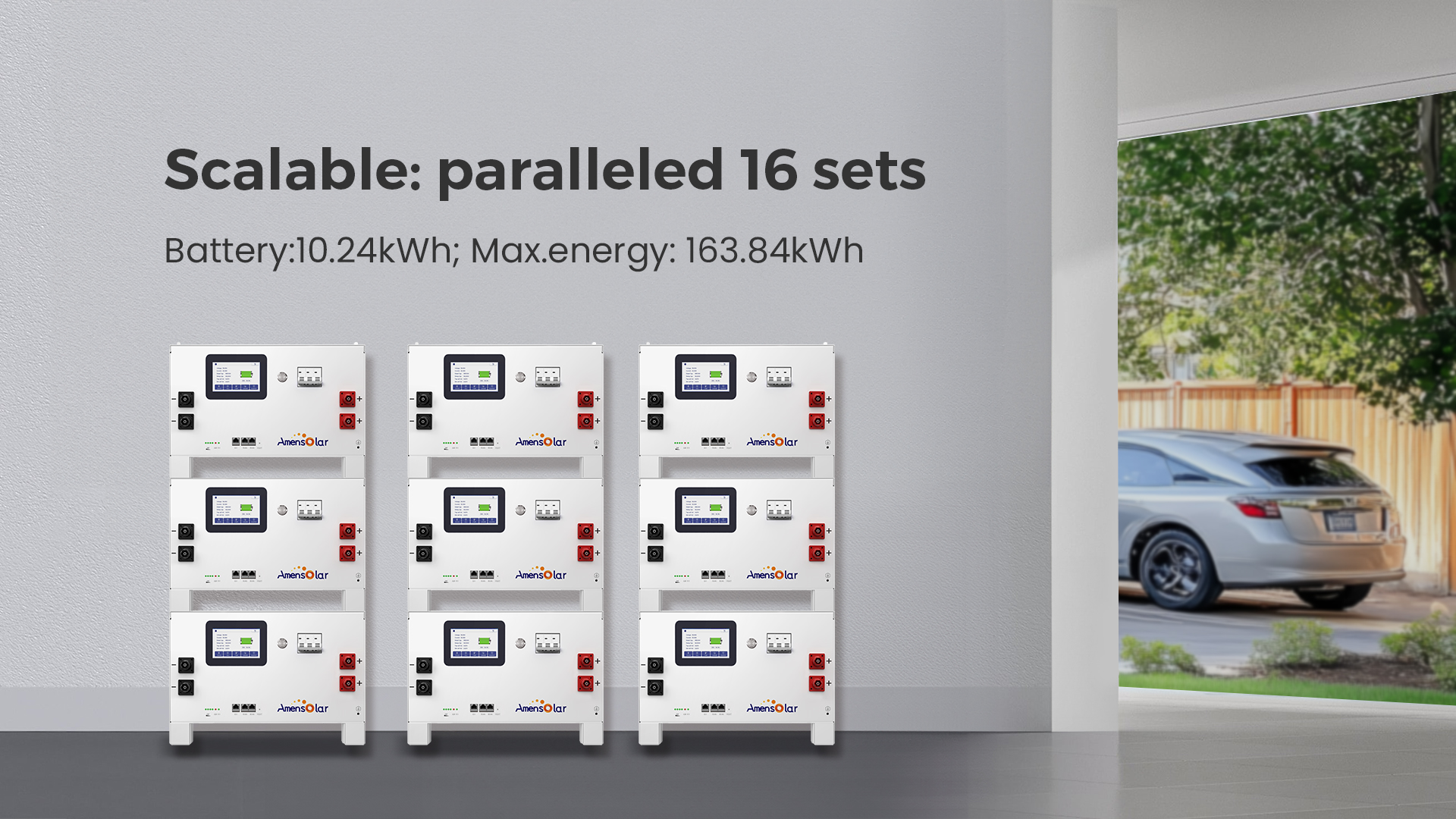

Scalable: paralleled 16 sets：Battery:10.24kWh – 163.84kWh
2U design; wall mounted：More capacity in limited space
Certification：IEC61000/CE/UN38.3/MSDS

MODEL:

INQUIRY

USER MANUAL

DATA SHEET

Wall-Mounted 200ah Large-Capacity Lithium Battery

Product Description

Product Datasheet

We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.

We partner with trusted logistics providers, ensuring products are well-protected.

AW10240 51.2V 200AH

POWER WALL 200A

AM12000 230A

E-BOX A5120

Model	S52200
Module Type	LFP 10.24kWh / LV
Nominal Voltage	51.2V
Operating Voltage Range	44.8~58.4V
Nominal Capacity	200Ah
Nominal Energy (at25°C)	10.24kWh
DOD	90%
Charge/Discharge Current	100A
Max Charge/Discharge Current	200A
Charge Temperature	200A

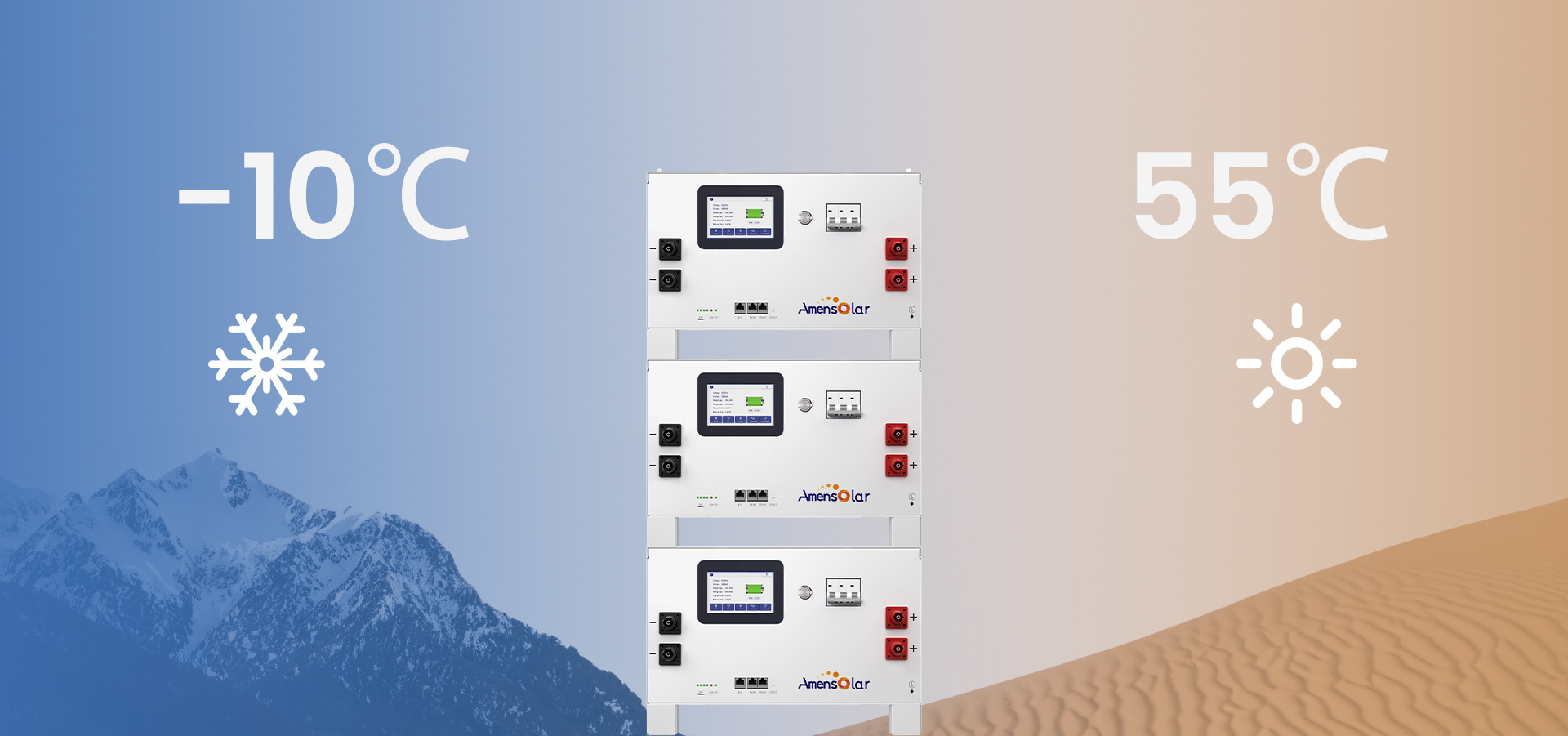

Charge Temperature	0~55℃
Discharge Temperature	-10~50℃
Relative Humidity	5% – 95%
Communication Interface	CAN / RS485
Enclosure Protection Rating	IP 52
Cooling Type	Natural cooling
Cycle Life	≥6000
Warranty	10 years

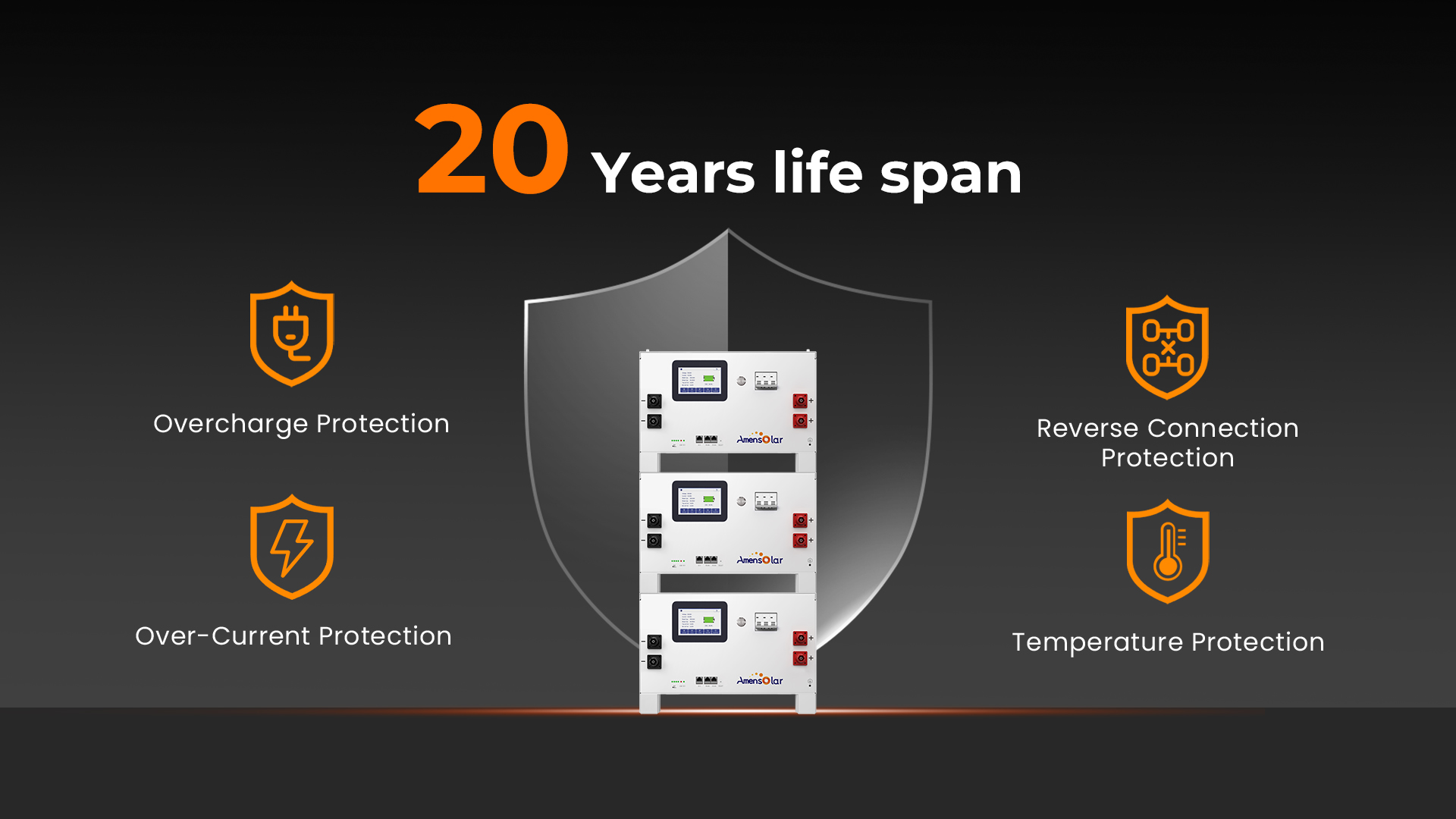

Life Span	20+ Years (25°C)
Max. Pieces of Parallel	16

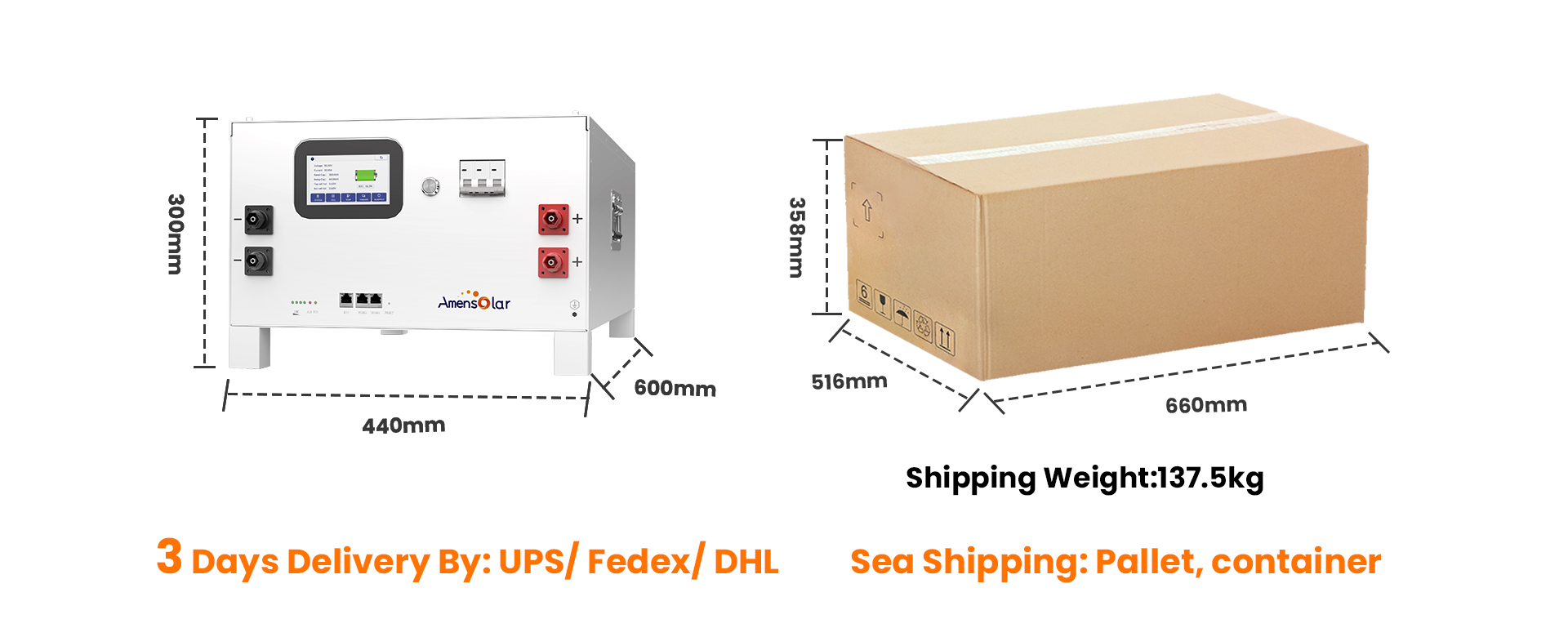

Dimension (LWH)	600440300mm
Weight	85±1kg
Certificates	IEC61000/CE/UN38.3/MSDS
