AMW10240 51.2V 200AH 10.24KWH Wall Mount Solar Battery Amensolar
Wall-Mounted 200ah Large-Capacity Lithium Battery
Product Description
AW10240 is a top-notch solar battery designed for versatility and convenience. With its wall-mountable feature and impressive auto DIP addressing function, it’s the perfect solution for diverse energy storage needs. ensuring your customers’ satisfaction and boosting your business growth.
Leading Features
-
01
Easy to be installed
Easy maintenance, flexibility and versatility.
-
02
LFP Prismatic Cell
Current interrupt Device (CID) helps pressure relief and ensures safe and detect controllable LifePo4 Battery.
-
03
51.2V low-voltage

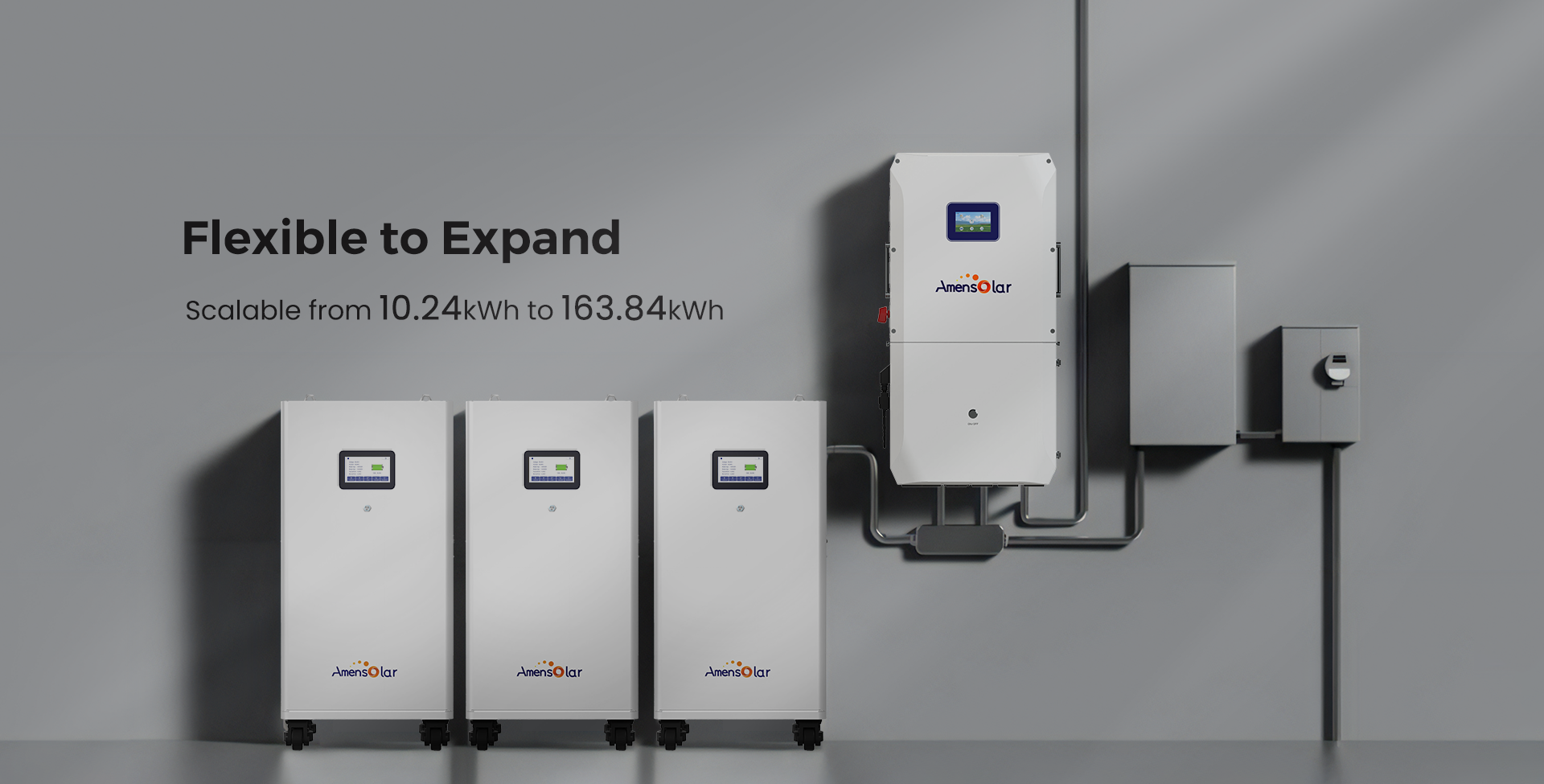

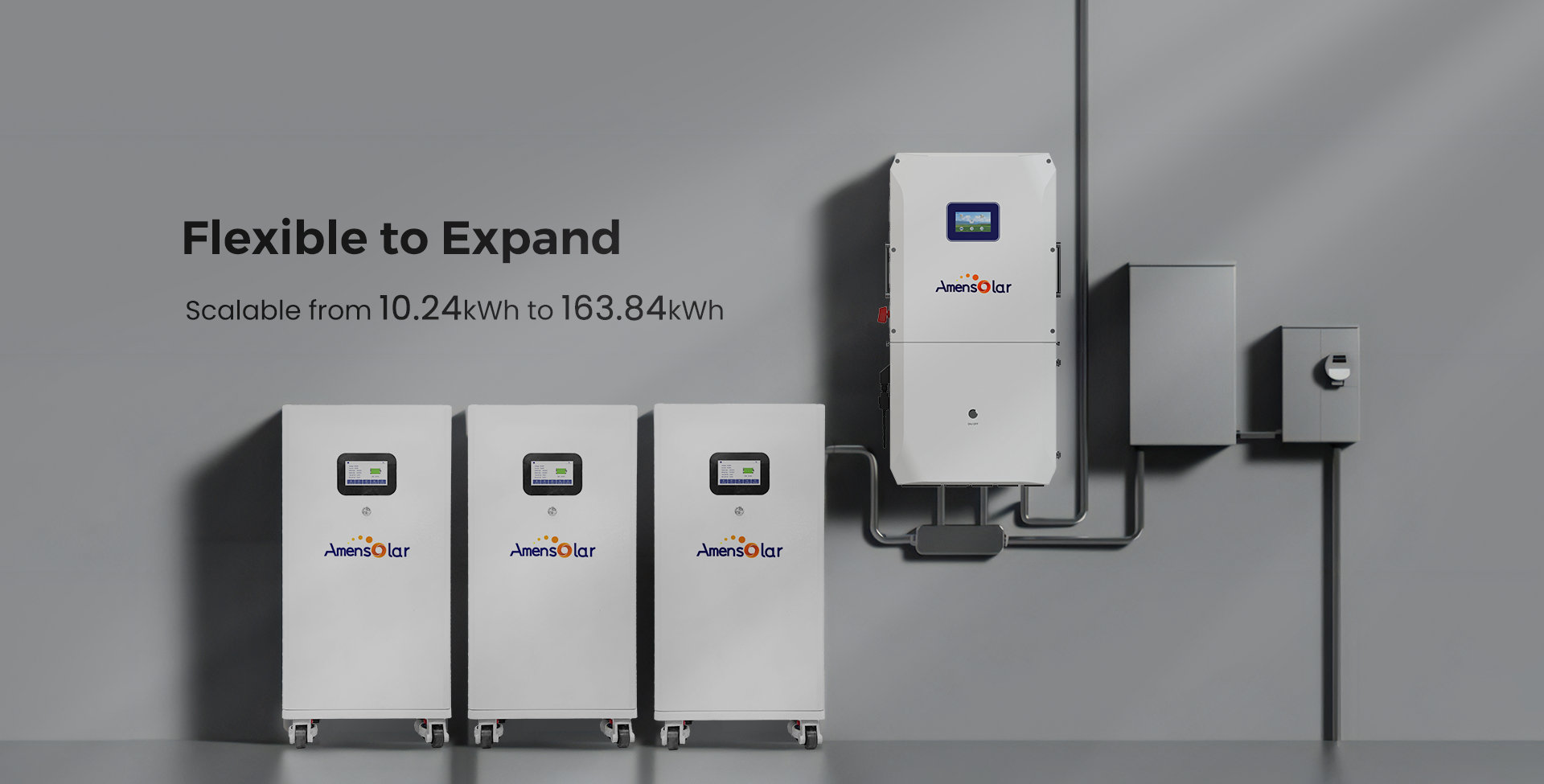

Support 8 sets parallel connection.
-
04
BMS
Real-time control and accurate monitor in single cell voltag, current and temperature, ensure battery safety.
Solar Hybrid Inverter Application
System Connection
Amensolar’s low-voltage battery, equipped with lithium iron phosphate as the positive electrode material, is crafted with a square aluminum shell cell design for superior durability and stability. When utilized parallelly with a solar inverter, it adeptly converts solar energy, guaranteeing a consistent power supply for electrical energy and loads.
Certificates
Our Advantages
Save Installation Space: POWER BOX wall-mounted lithium battery can install the battery on the wall to make full use of vertical space. This is useful for environments with limited space. Easy Maintenance: POWER BOX wall-mounted lithium battery is installed higher than the ground, making it easier to maintain and clean. Users can more easily check the status of the battery, replace the battery, or perform other maintenance operations without having to bend or squat.
Case Presentation

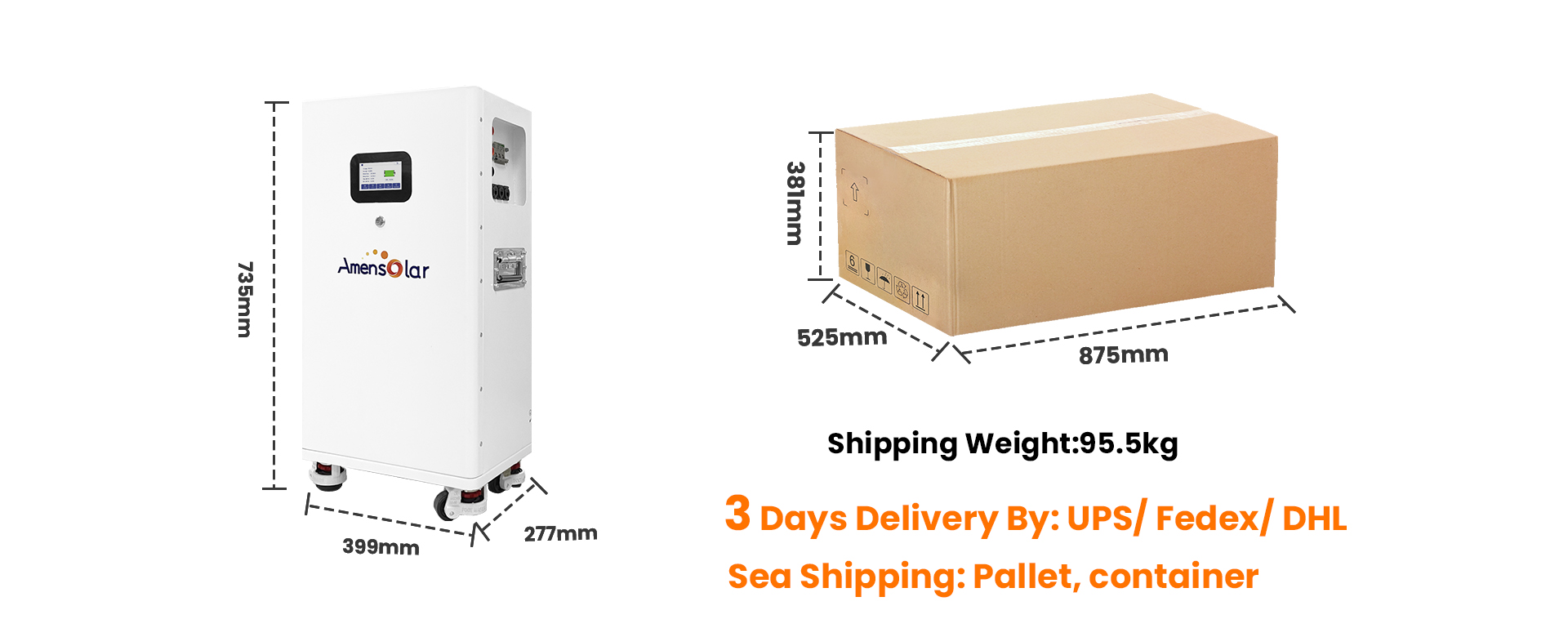

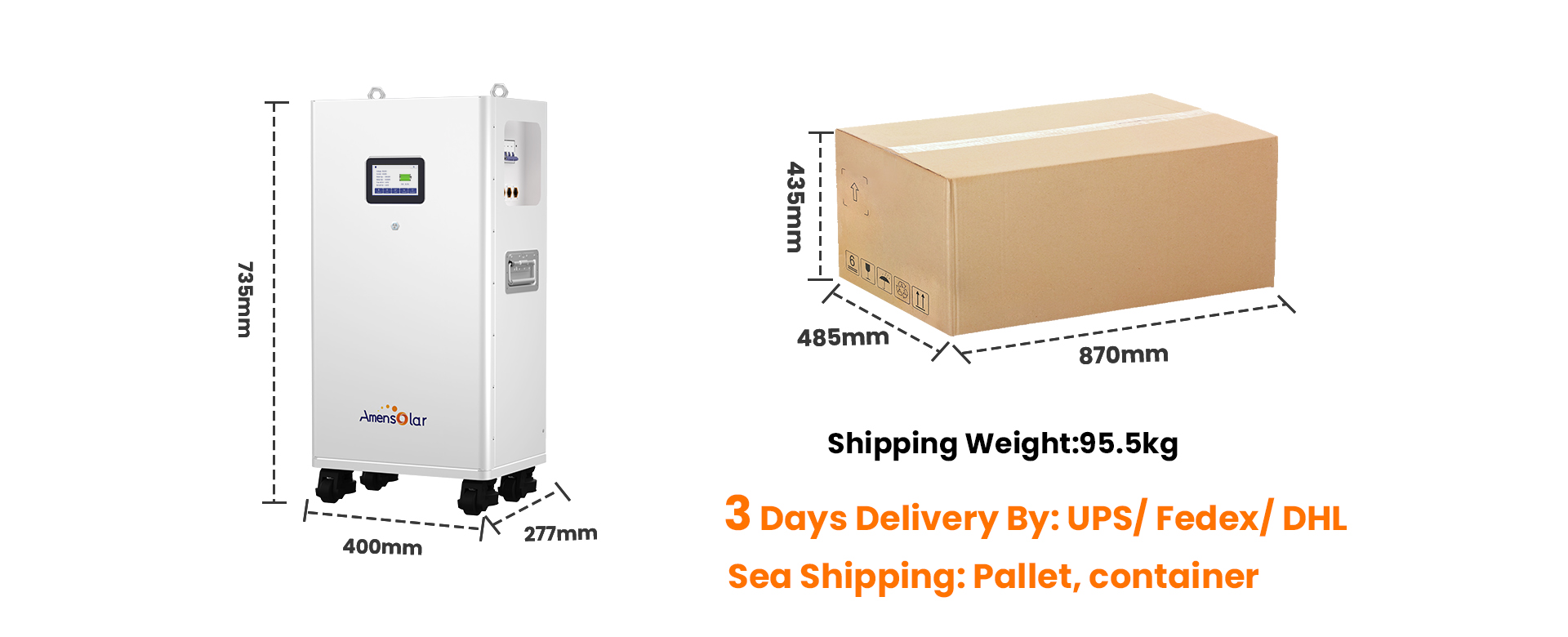

Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
| Item | AMW10240 |
| Certificate Model | YNJB16S100KX-L-2PD |
| Battery Type | LiFePO4 |
| Mount Type | Wall Mounted |
| Nominal Voltage(V) | 51.2 |
| Capacity(Ah) | 200 |
| Nominal Energy(KWh) | 10.24 |
| Operating Voltage(V) | 44.8~57.6 |
| Max Charge Current(A) | 200 |
| Charging Current(A) | 100 |
| Max Discharge Current(A) | 200 |
| Discharging Current(A) | 100 |

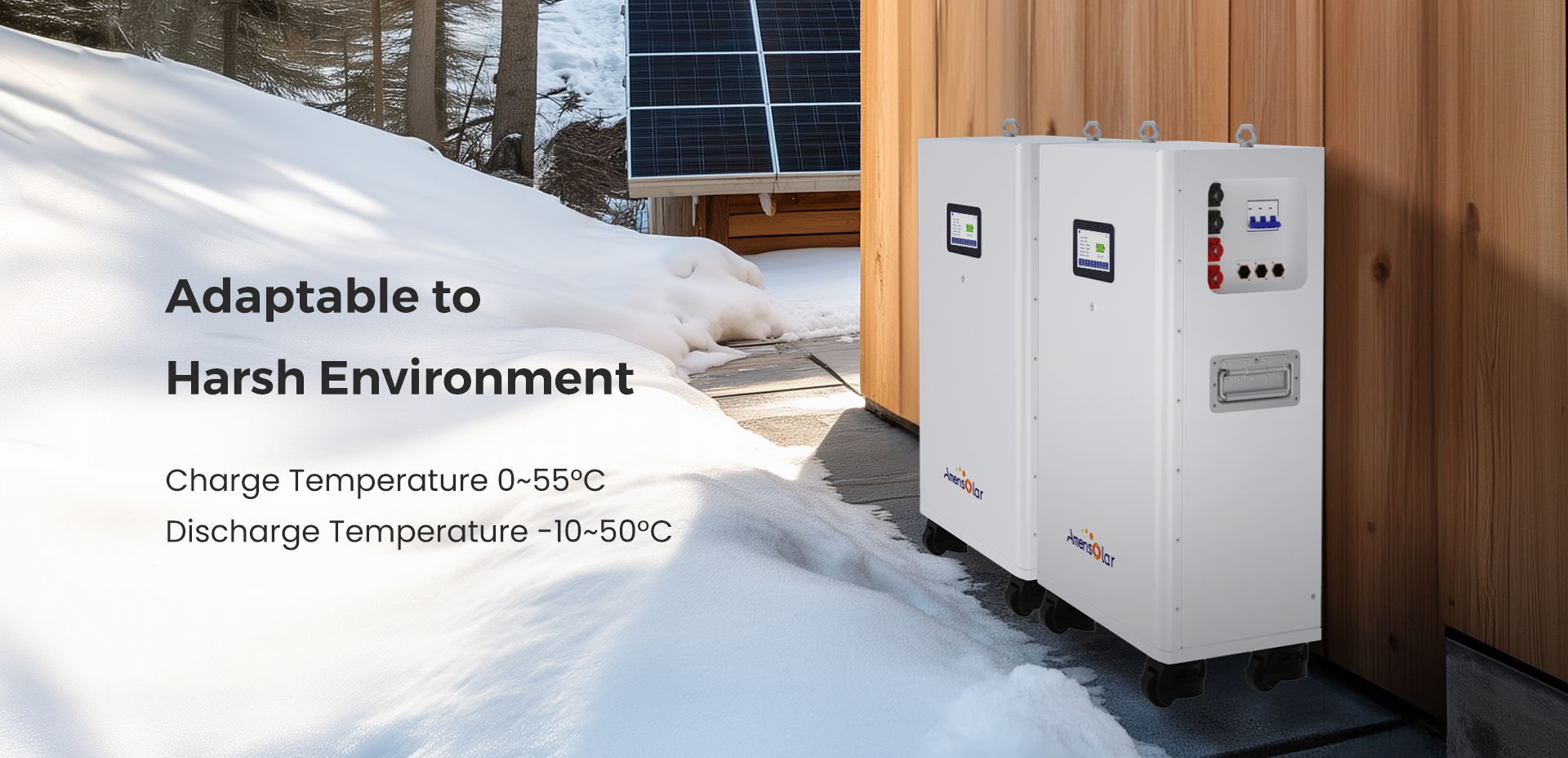

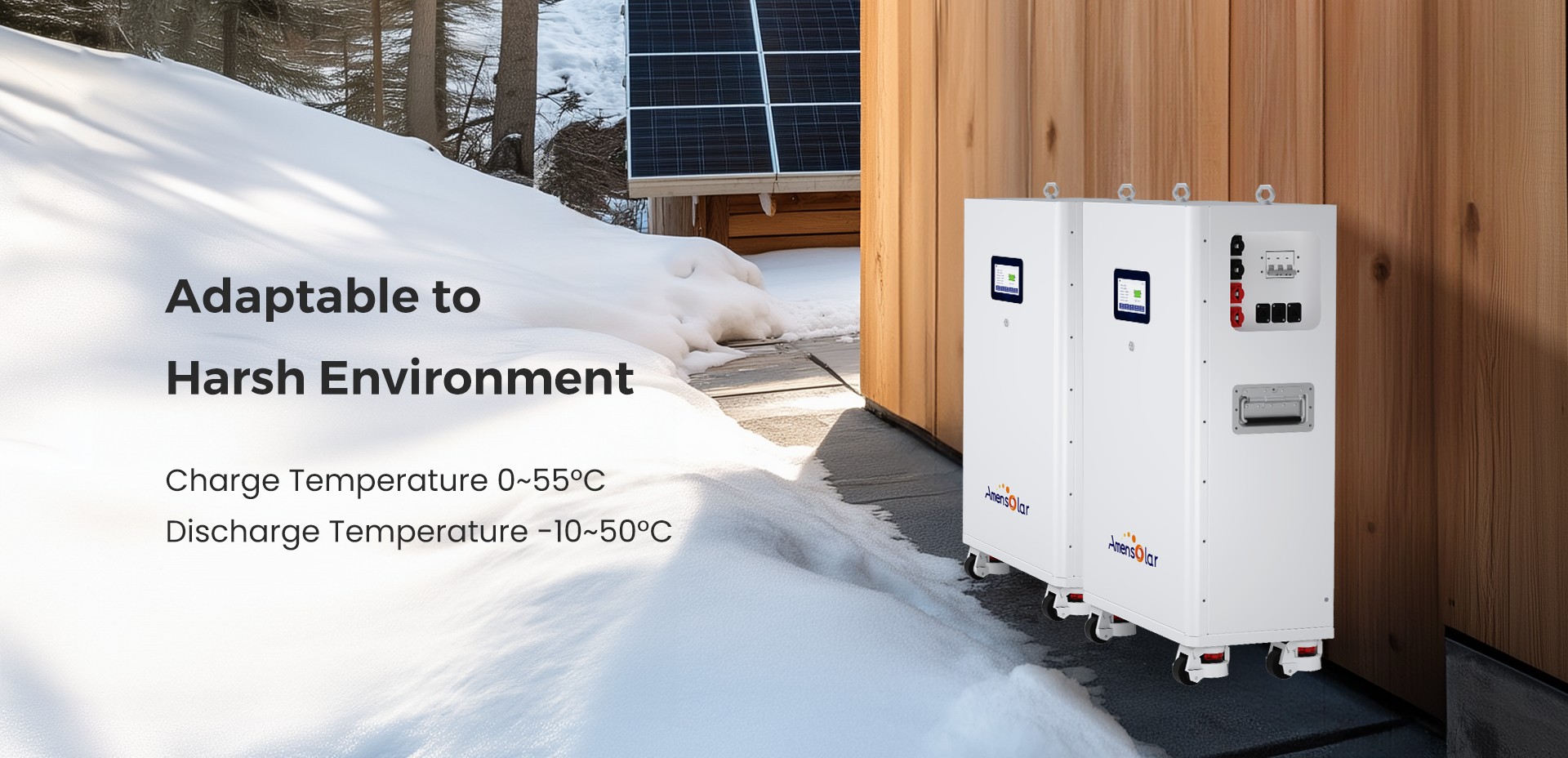

| Charging Temperature | 0℃~+55℃ |
| Discharging Temperature | -20℃~+55℃ |
| Relative Humidity | 5%-95% |
| Dimension(L*W*Hmm) | 530*760*210 |
| Weight(KG) | 97±0.5 |
| Communication | CAN,RS485 |
| Enclosure Protection Rating | IP21 |
| Cooling Type | Natural Cooling |
| Cycles Life | ≥6000 |
| Recommend DOD | 90% |
| Design Life | 20+Years(25 ℃@77℉) |
| Safety Standard | CE/UN38.3 |
| Max. Pieces of Parallel | 16 |
Compatible List of Inverter Brands
| Model | AW10240 | |||
| Nominal Voltage | 51.2V | |||
| Voltage Range | 44.8V~58.4V | |||
| Nominal Capacity | 200Ah | |||
| Nominal Energy | 10.24kWh | |||
| Charge Current | 100A | |||
| Max Charge Current | 200A | |||
| Discharge Current | 100A | |||
| Max Discharge Current | 200A | |||
| Charge Temperature | 0℃~+55℃ | |||
| Discharge Temperature | -10℃~+55℃ | |||
| Battery Equalization | Active 3A and Passive | |||
| Relative Humidity | 5% – 95% | |||
| Dimension(L*W*H) | Battery: 444*500*253mm Including Rackets: 469*526*309mm | |||
| Weight | 85±1KG | |||
| Communication | CAN, RS485 | |||
| Enclosure Protection Rating | IP52 | |||
| Cooling Type | Natural Cooling | |||
| Cycle Life | ≥6000 | |||
| Recommend DOD | 90% | |||
| Design Life | 20+ Years (25℃@77℉) | |||
| Safety Standard | CE/UN38 .3 | |||
| Max. Pieces of Parallel | 16 | |||
| Object | Description |
| ❶ | Breaker |
| ❷ | Ground connection |
| ❸ | Load Positive |
| ❹ | Power switch |
| ❺ | External RS485/CAN interface |
| ❻ | 232 interface |
| ❼ | Internal RS485 interface |
| ❽ | dry contact |
| ❾ | Load Negative |
| ❿ | Monitor |
