N3H-X5/X8/X10US 5KW 8KW 10KW Split Phase Hybrid Solar Inverter
120/240V Split Phase Hybrid Inverter
Product Description
With output voltage capabilities including (110~120)/(220~240V) split phase ,240V single phase the N3H-X5/X8/X10US inverter is equipped with a user-friendly interface for effortless monitoring and control. This empowers users to effectively manage their power systems, providing versatile and dependable power for families.
Leading Features
-
01
Easy Installation
Flexible configuration, plug and play set-up built-in fuse protection.
-
02
48V
Includes low-voltage batteries.
-
03
IP65 Rated
Engineered to last with maximum flexibility Suitable for outdoor installation.
-
04
SOLARMAN Remote Monitoring
Monitor your system remotely via smartphone app or web portal.

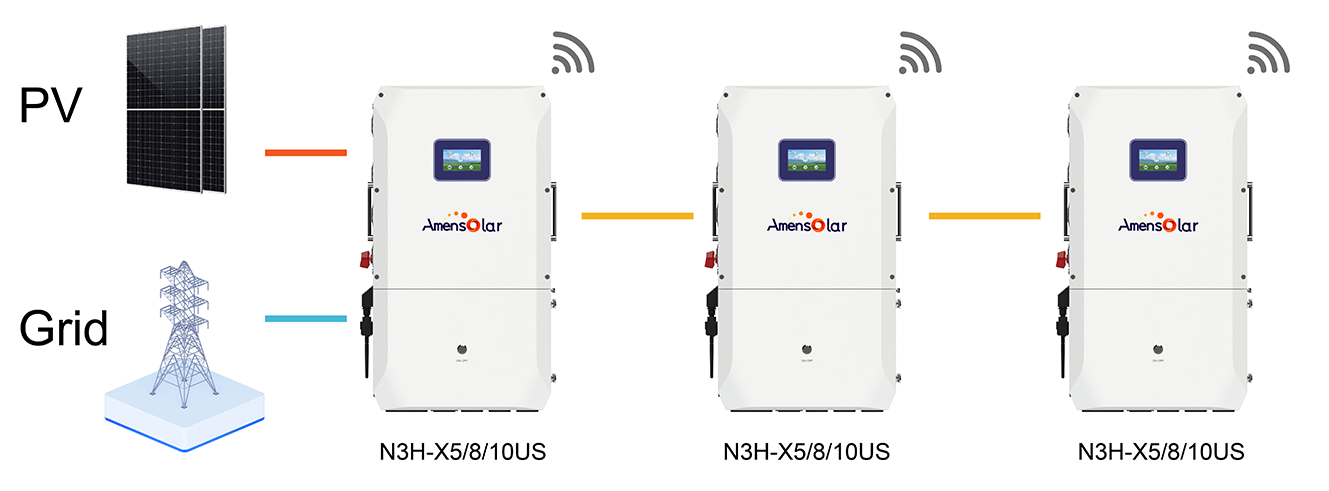

Solar Hybrid Inverter Application
Certificates
Case Presentation
Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
|
Technical Data |
N3H-X5US |
N3H-X8US |
N3H-X10US |
|
|
PV Input Data |
||||
| MAX.DC Input Power | 7.5KW | 12KW | 15KW | |
| No.of MPPT Trackers | 4 | |||
| MPPT Range | 120 - 430V | |||
| MAX.DC Input Voltage | 500V | |||
| MAX.Input Current | 14A×4 | |||
|
Battery Input Data |
||||
| Nominal Voltage(Vdc) | 48V | 48V | 48V | |
| MAX.Charging/Discharging Current | 120A/120A | 190A/190A |
190A/210A |
|
| Battery Voltage Range | 40-60V | |||
| Battery Type | Lithium and Lead Acid Battery | |||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||
|
AC Output Data(On-Grid) |
||||
| Nominal Output Power Output to Grid | 5KVA | 8KVA | 10KVA | |
| MAX. Apparent Power Output to Grid | 5.5KVA | 8.8KVA | 11KVA | |
| Output Voltage Range | 110-120V/220-240V split phase, 208V(2/3 phase), 230V(1 phase) | |||
| Output Frequency | 50/60Hz (45 to 54.9Hz / 55 to 65Hz) | |||
| Nominal AC Current Output to Grid | 20.8A | 33.3A | 41.7A | |
| Max.AC Current Output to Grid | 22.9A | 36.7A | 45.8A | |
| Output THDI | < 2% | |||
|
AC Output Data(Back-Up) |
||||
| Nominal. Apparent Power Output | 5KVA | 8KVA | 10KVA | |
| MAX. Apparent Power Output | 5.5KVA | 8.8KVA | 11KVA | |
| Nominal Output Voltage L-N/L1-L2 | 120/240V | |||
| Nominal Output Frequency | 60Hz | |||
| Output Power Factor | 0.8leading …0.8lagging | |||
| Output THDU | < 2% | |||
|
Efficiency |
||||
| Europe Efficiency | >=97.8% | |||
| MAX. Battery to Load Efficiency | >=97.2% | |||
|
Protection |
||||
| Grounding Detection | YES | |||
| Arc Fault Protection | YES | |||
| Island Protection | YES | |||
| Battery Reverse Polarity | YES | |||
| Insulation Resistor Detection | YES | |||
| Residual Current Monitoring Unit | YES | |||
| Output Over Current Protection | YES | |||
| Back-up Output Short Protection | YES | |||
| Terminal Temperature Detection | YES | |||
| Output Over Voltage Protection | YES | |||
| Output Under Voltage Protection | YES | |||
|
General Data |
||||
| Output Conduit | 25.4mm | |||
| PV Input Conduit | 25.4mm | |||
| BAT Input Conduit | 34.5mm | |||
| Operating Temperature Range | -25 ~ +60°C | |||
| Relative Humidity | 0-95% | |||
| Operating Altitude | 0~4000m | |||
| Ingress Protection | IP65/NEMA 3R | |||
|
Weight
|
55kg | |||
| Size (Width*Height*Depth) | 450mm x 820mm x 261mm | |||
| Cooling | Air Cooling | |||
| Noise Emission | <38dB | |||
| Display | LCD | |||
| Communication With BMS/Meter/EMS | CAN，RS485 | |||
| Supported Communication Interface | RS485, WLAN, 4G (optional) | |||
| Self-consumption at Night | < 25W | |||
| Safety | UL1741SA all options , UL1699B, CSA 22.2 | |||
| EMC | FCC Part 15 ClassB | |||
| Grid Connection Standards | IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III | |||
| Object | Description |
| 01 | BAT inpu/BAT output |
| 02 | WIFI |
| 03 | Communication Pot |
| 04 | CTL 2 |
| 05 | CTL 1 |
| 06 | Load 1 |
| 07 | Ground |
| 08 | PV input |
| 09 | PV output |
| 10 | Generator |
| 11 | Grid |
| 12 | Load 2 |
