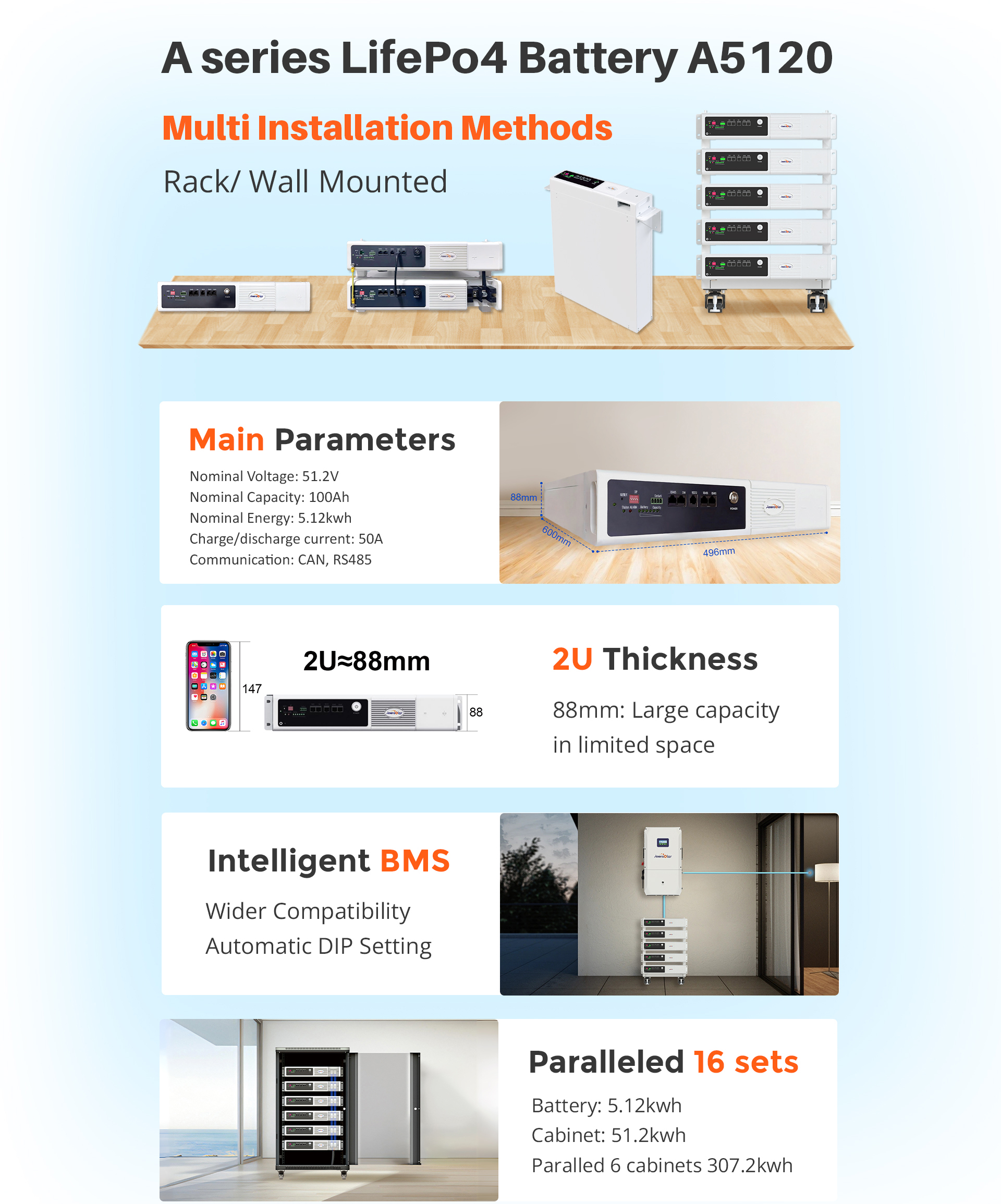

A5120 Lifepo4 5.12kwh Electric Hybrid Solar Lithium Battery Storage for Home

    • Cycle life:>6,000 Cycles at 90% DOD
    • 2U thickness:88mm:Ultra-Thin Body, More capacity in limited space
    • Scalable paralleled 16 sets:Battery:5.12kWh; Cabinet 51.2kWh;Paralled 6 cabinets 307.2kWh
    • Auto-heating function:Heating below 0℃,BMS automatic management
    • Consistency of battery cells:Active equalization (3A) Settable charging voltage
    • Intelligent BMS:Wider compatibility;Atuomatic DIP Setting
    • Safety and Certification:UL1973,CE,IEC62619,UN38.3 with stringent safety standards
    • UL9540A certificate is in process
    • Car-grade LiFePo4 battery:Compact, safe, stable, flexible
    • Customizable:Multi-installation methods,Indoor or outdoor cabinets as request
Place of Origin  China, Jiangsu
Brand Name  Amensolar
Model Number  A5120
Certification  UL1973/UL9540A/CE/IEC62619/UN38.3

Rack-Mounted Ultra-Thin Lithium Battery 2U Design

  • Product Description
  • Product Datasheet
  • solar inverter for home
    Solar battery for home
    solar battery
    1 (3)
    solar inverter
    solar battery
    solar battery
    solar inverter for home
    solar inverter for home
    solar inverter for home
    solar inverter for home
    solar inverter for home
    solar invertr for home
    solar inverter for home
    solar inverter for home
    solar inverter for home
    solar inverter for home
    详情 (2)
    1

    Related Products

    AM5120S  5.12KWH  Rack Mounted LiFePO4 Solar Battery

    AM5120S

    N3H-X10-US 10KW Split Phase Hybrid Solar Inverter

    N3H-X10-US 10KW

    POWER BOX 10.24KWH Wall Mounted Lithium Battery

    POWER BOX A5120

    POWER WALL 51.2V 200AH 10.24KWH Wall Mount Solar Battery Amensolar

    POWER WALL 200A

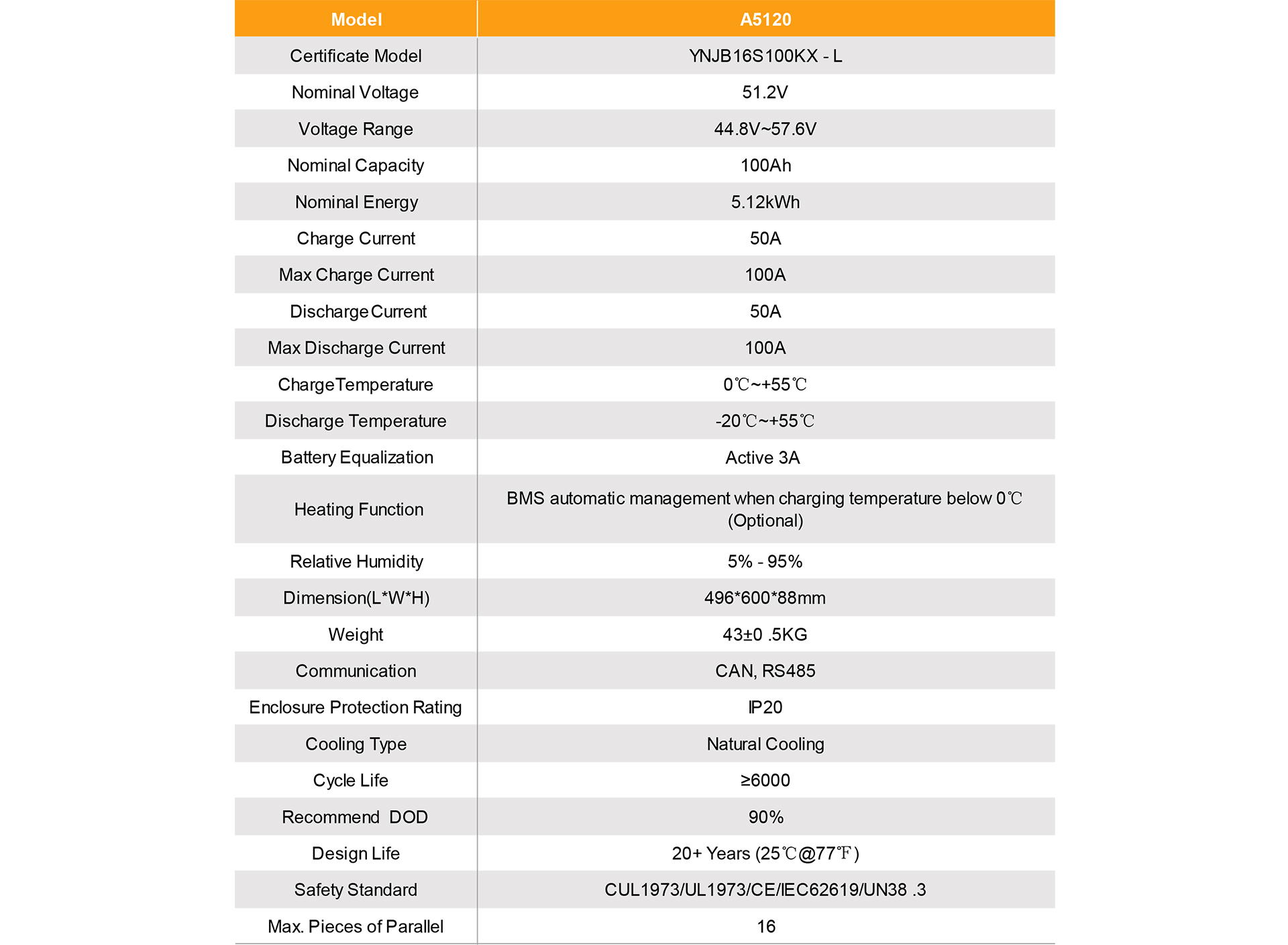

    Battery Name A5120
    Certificate Model YNJB16S100KX – L
    Battery Type LiFePo4
    Mount Type Rack Mounted
    Nominal Voltage (V) 51.2
    Capacity(Ah) 100
    Nominal Energy (KWh) 5.12
    Operating Voltage(V) 44.8~57.6
    Max Charge Current(A) 100
    charging Current(A) 50
    Max Discharge Current(A) 100
    discharging current(A) 50
    charging Temperature 0C~+55C
    Discharging Temperature -20C~+55C
    Relative Humidity 5% – 95%

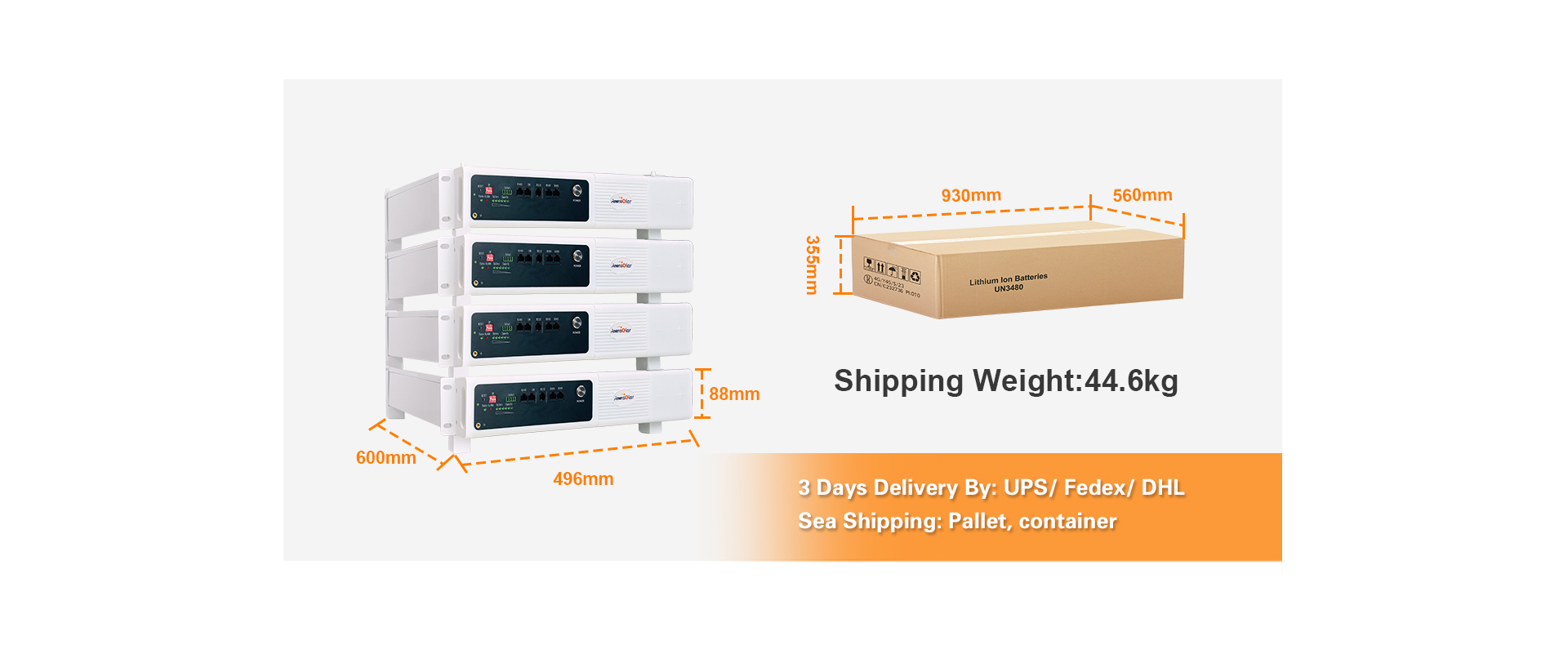

    Dimension(L*W*H mm) 496*600*88
    Weight(KG) 43±0 .5
    Communication CAN, RS485
    Enclosure Protection Rating IP21
    Cooling Type Natural Cooling
    Cycles Life ≥6000
    Recommend  DOD 90%
    Design Life 20+ Years (25℃@77℉)
    Safety Standard UL1973/CE/IEC62619/UN38 .3
    Max. Pieces of Parallel 16

    Compatible List of Inverter Brands

    安曼图片

    A5120 panel diagram
    Object Description
    1 Power Indicator
    2 Ground wire hole
    3 Status Indicator
    4 Alarm Indicator
    5 Battery Energy Indicator
    6 RS485 / CAN Interface
    7 RS232 Interface
    8 RS485 Interface
    9 Power on/off
    10 Negative Terminal
    11 Positive Terminal
    12 Reset
    13 Dip Switch
    Address
    14 Dry Contact
