Rack-Mounted Ultra-Thin Lithium Battery 2U Design
Product Description

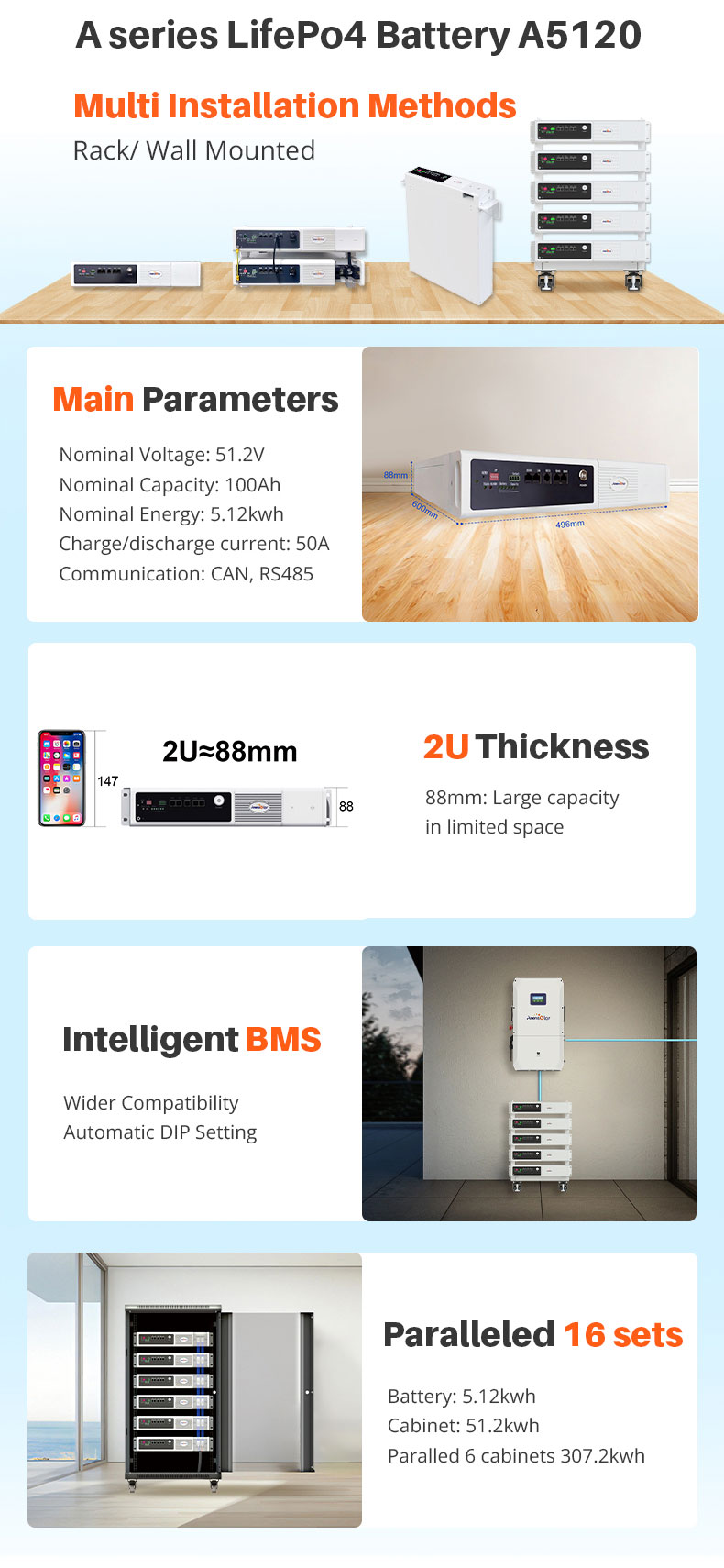

A5120 Lithium Ion Ultra-thin Battery for House is a space-saving and lightweight solution for residential energy storage. With its ultra-thin design, it efficiently fits into tight spaces, maximizing the use of available space. At the same time, its lightweight nature makes it easy to handle and install, reducing the overall assembly effort.
Leading Features
-
01
Easy to be installed
Easy maintenance, flexibility and versatility.
-
02
LFP Prismatic Cell
Current interrupt Device (CID) helps pressure relief and ensures safe and detect controllable aluminum shells is welded to ensure sealing.
-
03
51.2V low-voltage
Support 16 sets parallel connection.
-
04
BMS
Real-time control and accurate monitor in single cell voltage,current and temperature, ensure battery safety.
Solar Hybrid Inverter Application
System Connection
Amensolar’s low-voltage battery is a battery with lithium iron phosphate as the positive electrode material. The square aluminum shell cell design makes it highly durable and stable. When used in parallel with a solar inverter, it can effectively convert solar energy. Provide a stable power supply for electrical energy and loads.
Certificates
Our Advantages
1. Space saving: The A5120 lithium battery adopts an ultra-thin design and can be easily installed in a standard rack. Can save equipment space to the greatest extent.
2. Easy to install: The A5120 lithium battery adopts a modular design and lightweight casing, making the installation process easier and faster.
3. Flexibility and scalability: The A5120 lithium battery rack battery has a modular design, and users can choose the appropriate capacity and quantity according to actual needs.
Case Presentation
Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
| Battery Name | A5120 |
| Certificate Model | YNJB16S100KX – L |
| Battery Type | LiFePo4 |
| Mount Type | Rack Mounted |
| Nominal Voltage (V) | 51.2 |
| Capacity(Ah) | 100 |
| Nominal Energy (KWh) | 5.12 |
| Operating Voltage(V) | 44.8~57.6 |
| Max Charge Current(A) | 100 |
| charging Current(A) | 50 |
| Max Discharge Current(A) | 100 |
| discharging current(A) | 50 |
| charging Temperature | 0C~+55C |
| Discharging Temperature | -20C~+55C |
| Relative Humidity | 5% – 95% |
| Dimension(L*W*H mm) | 496*600*88 |
| Weight(KG) | 43±0 .5 |
| Communication | CAN, RS485 |
| Enclosure Protection Rating | IP21 |
| Cooling Type | Natural Cooling |
| Cycles Life | ≥6000 |
| Recommend DOD | 90% |
| Design Life | 20+ Years (25℃@77℉) |
| Safety Standard | UL1973/CE/IEC62619/UN38 .3 |
| Max. Pieces of Parallel | 16 |
Compatible List of Inverter Brands
| Object | Description |
| 1 | Power Indicator |
| 2 | Ground wire hole |
| 3 | Status Indicator |
| 4 | Alarm Indicator |
| 5 | Battery Energy Indicator |
| 6 | RS485 / CAN Interface |
| 7 | RS232 Interface |
| 8 | RS485 Interface |
| 9 | Power on/off |
| 10 | Negative Terminal |
| 11 | Positive Terminal |
| 12 | Reset |
| 13 | Dip Switch |
| Address | |
| 14 | Dry Contact |
