Best Hybrid Solar Inverter and Battery Supplier – Amensolar


    1.Solar Inverter:
      • Certificate: UL1741 UL1699B CSA IEEE Hawaiia
      • Inverter power: 5KW 8KW 10KW 12KW
      • Maximum number of parallel inverters: 4
      • Communication:Can,Rs485
      • Support split phase 110/220V ,208V and 230V voltage.
      • Support OEM for customers with their own brand.
      • Support customer to do UL multiple listing.
      • Support parallel and generator function.
      • Support peak shifting function for customer to use extral electricity to earn money .
      • Max grid pass though current(A): 200
    2.Lithium Battery:
    • Mainly models: A5120 51.2V 100Ah 5.12KWh
    • Power box: wall mounted 51.2V 200Ah 10.24KW
    • Certificate:UL1973 CE IEC62619/UN38.3

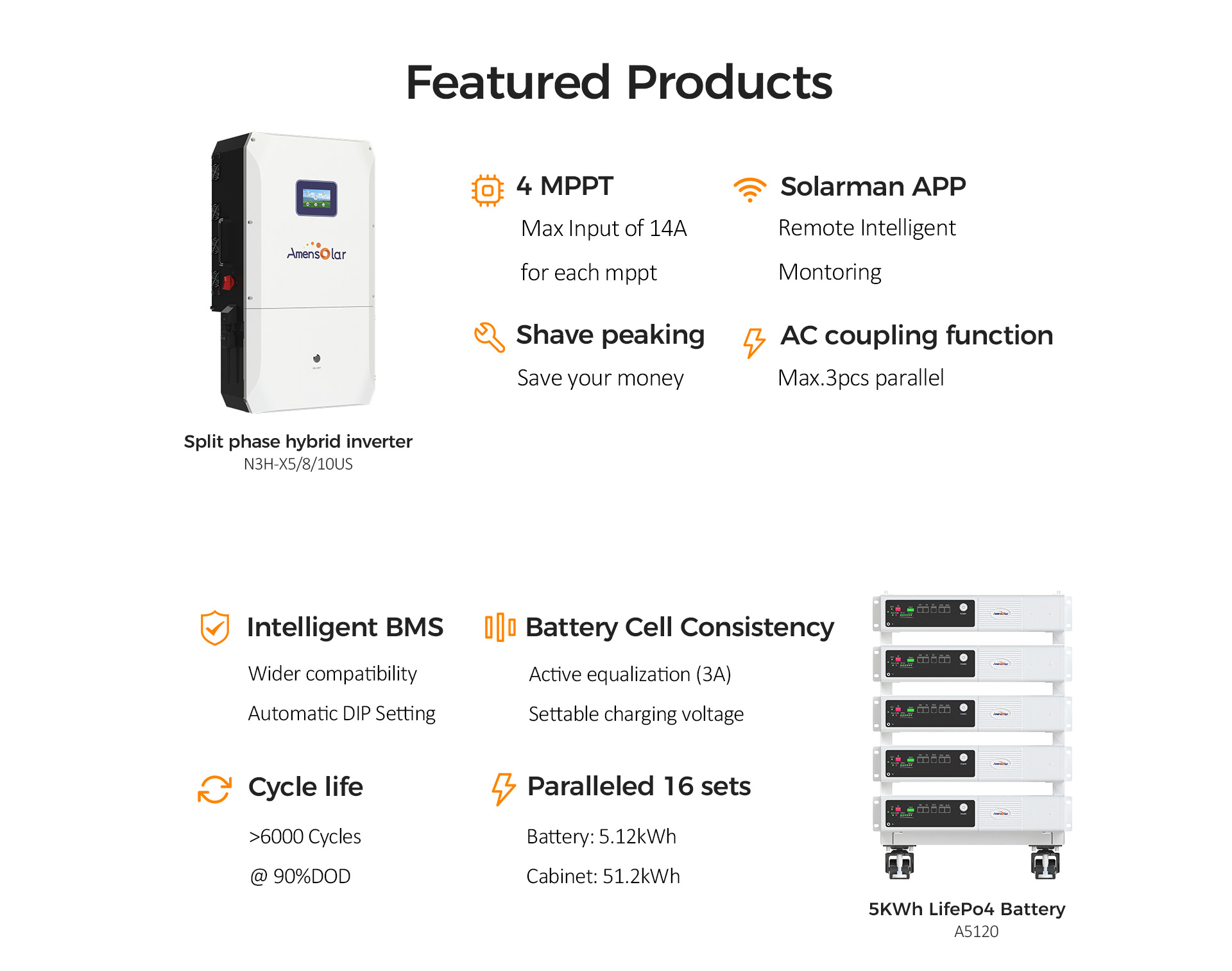

120/240V Split Phase Hybrid Inverter

  • Product Description
  • Product Datasheet
  • Related Products

    A5120 51.2V 100AH 5.12KWH Best Large Home Solar Battery Pack

    A5120 51.2V 100A

    AW5120 51.2V 100AH 5.12KWH Wall Mounted LiFePO4 Solar Battery Ultra-thin for House Amensolar

    AW5120 100AH

    POWER BOX 10.24KWH Wall Mounted Lithium Battery

    POWER BOX A5120

    POWER WALL 51.2V 200AH 10.24KWH Wall Mount Solar Battery Amensolar

    POWER WALL 200A

    AS5120 51.2V 100AH 5.12KWH Stack Mounted LifePo4 Solar Battery Amensolar

    AS5120

    AM5120S  5.12KWH  Rack Mounted LiFePO4 Solar Battery

    AM5120S

    Technical Data N3H-X10-US
    PV Input Data
    MAX.DC Input Power 15KW
    NO.MPPT Tracker 4
    MPPT Range 120 – 500V
    MAX.DC Input Voltage 500V
    MAX.Input Current 14Ax4
    Battery Input Data
    Nominal voltage (Vdc) 48V
    MAX.Charging/Discharging Current 190A/210A
    Battery Voltage Range 40-60V
    Battery Type Lithium and Lead Acid Battery
    Charging Strategy for Li-Ion Battery Self-adaption to BMS
    AC Output Data(On-Grid)
    Nominal output power Output to Grid 10KVA
    MAX. Apparent Power Output to Grid 11KVA
    Output Voltage Range 110- 120/220-240V split phase, 208V(2/3 phase), 230V(1 phase)
    Output Frequency 50/60Hz (45 to 54.9Hz / 55 to 65Hz)
    Nominal AC Current Output to Grid 41.7A
    Max.AC Current Output to Grid 45.8A
    Output Power Factor 0.8leading …0.8lagging
    OutPut THDI < 2%
    AC Output Data(Back-Up)
    Nominal. Apparent Power Output 10KVA
    MAX. Apparent Power Output 11KVA
    Nominal Output Voltage L-N/L1-L2 120/240V
    Nominal Output Frequency 60Hz
    Output THDU < 2%
    Efficiency
    Europe Efficiency >=97.8%
    MAX. Battery to Load Efficiency >=97.2%
    nx10
    Object Description
    01 BAT inpu/BAT output
    02 WIFI
    03 Communication Pot
    04 CTL 2
    05 CTL 1
    06 Load 1
    07 Ground
    08 PV input
    09 PV output
    10 Generator
    11 Grid
    12 Load 2
