AMF16000 16KWH Floor-Mounted Lithium Battery

    • Cycle life:>8,000 Cycles at 90% DOD

    • Car-grade LiFePo4 battery:Compact, safe, stable, flexible
    • Consistency of battery cells:Active equalization (3A) Settable charging voltage
    • Auto-heating function:Heating below 0℃ BMS automatic management
    • Touch screen:View battery information Set communication protocol and DIP
    • Intelligent BMS:Wider compatibility;Atuomatic DIP Setting
    • Scalable: paralleled 16 sets:Battery:16kWh – 256kWh
    • 2U design; wall mounted:More capacity in limited space
    • Certification:UL1973/IEC61000/CE/UN38.3/MSDS
MODEL:
Place of Origin  China, Jiangsu
Brand Name  Amensolar
Model Number  AMF16000
Certification  UL1973/IEC61000/CE/UN38.3/MSDS

Wall-Mounted 200ah Large-Capacity Lithium Battery

  • Product Description
  • Product Datasheet

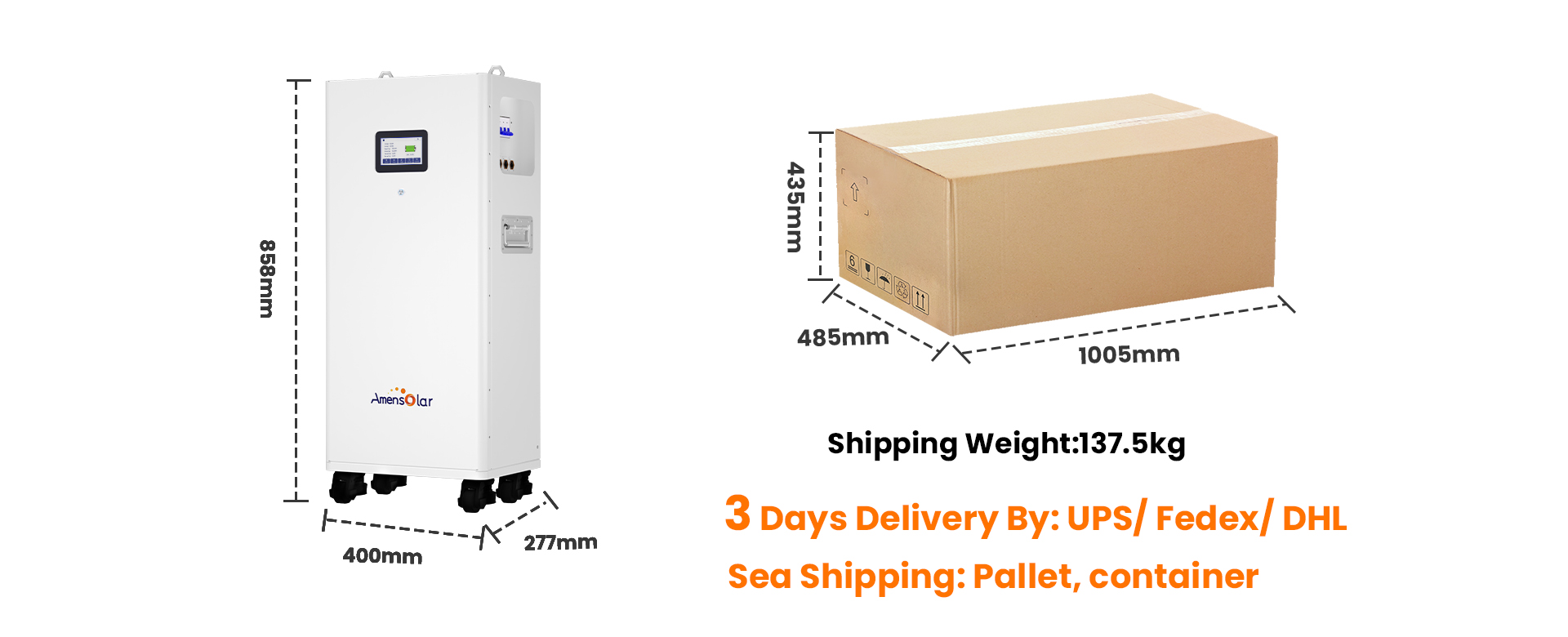

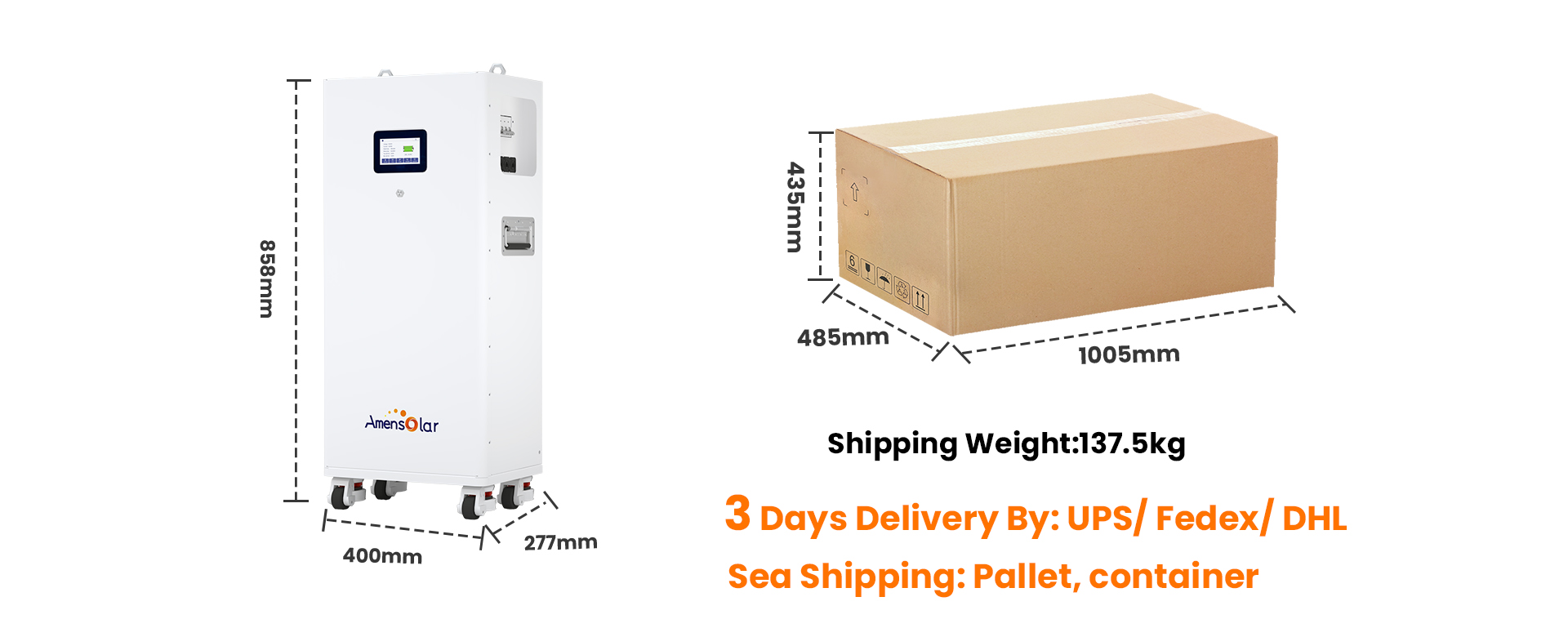

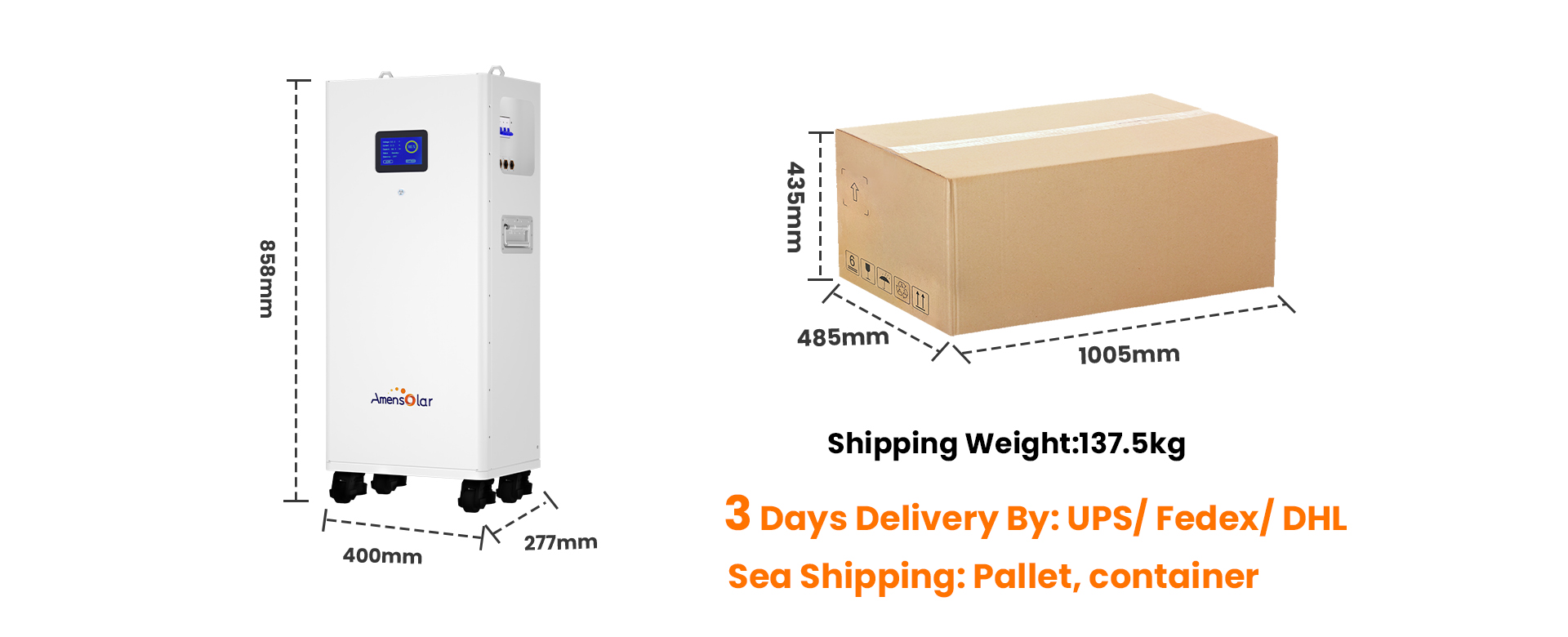

  • AMF16000 Accessories

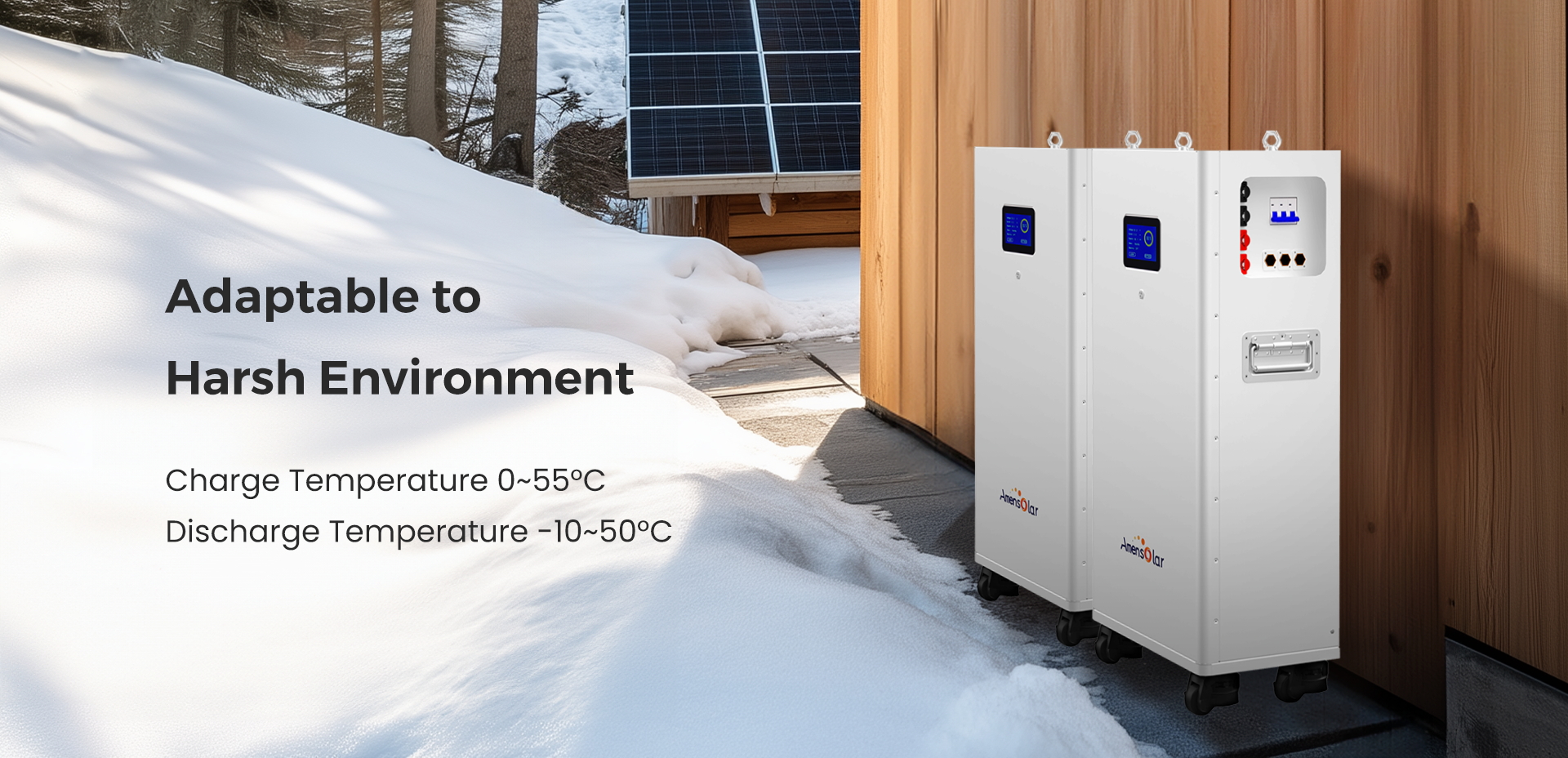

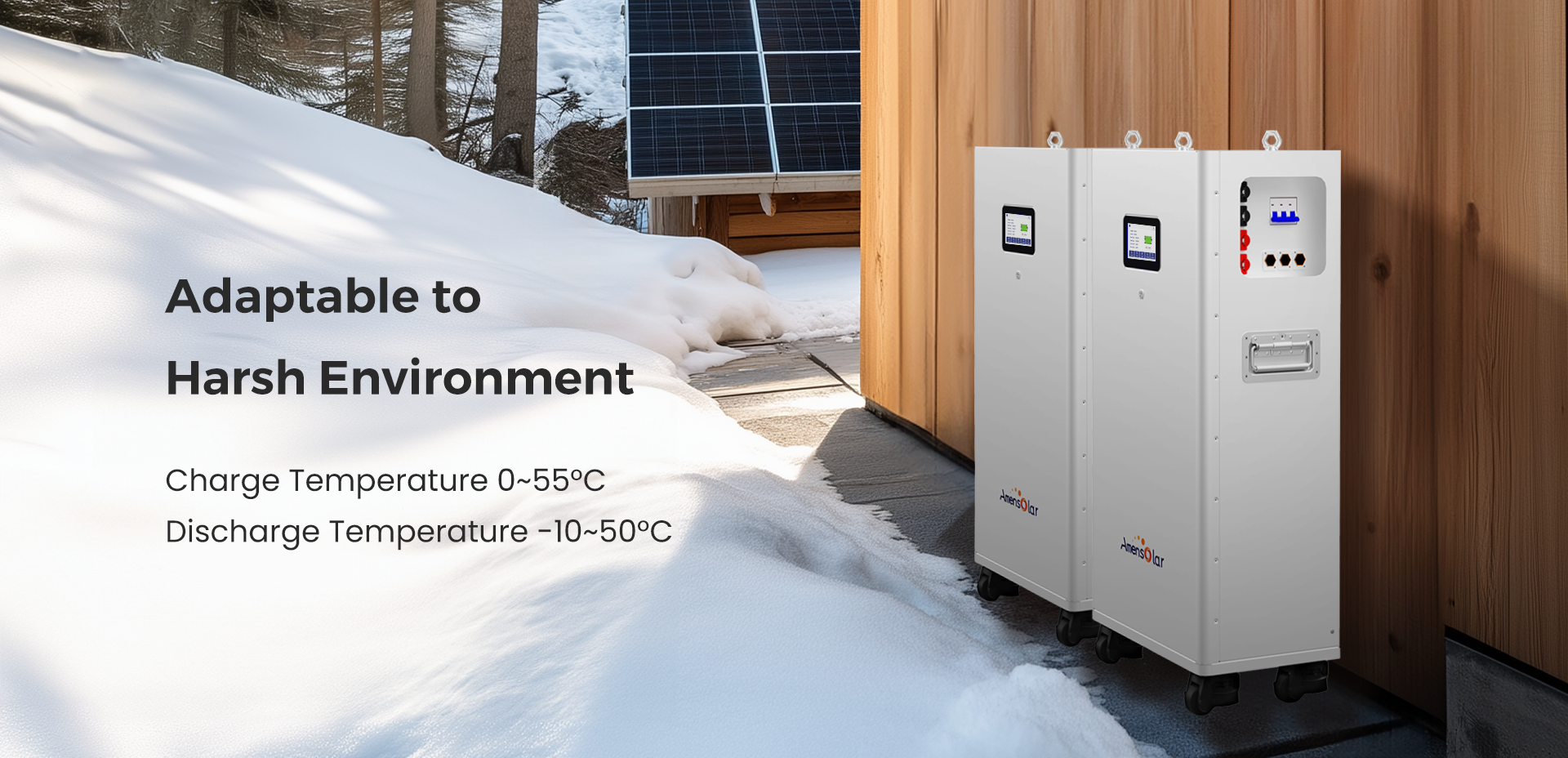

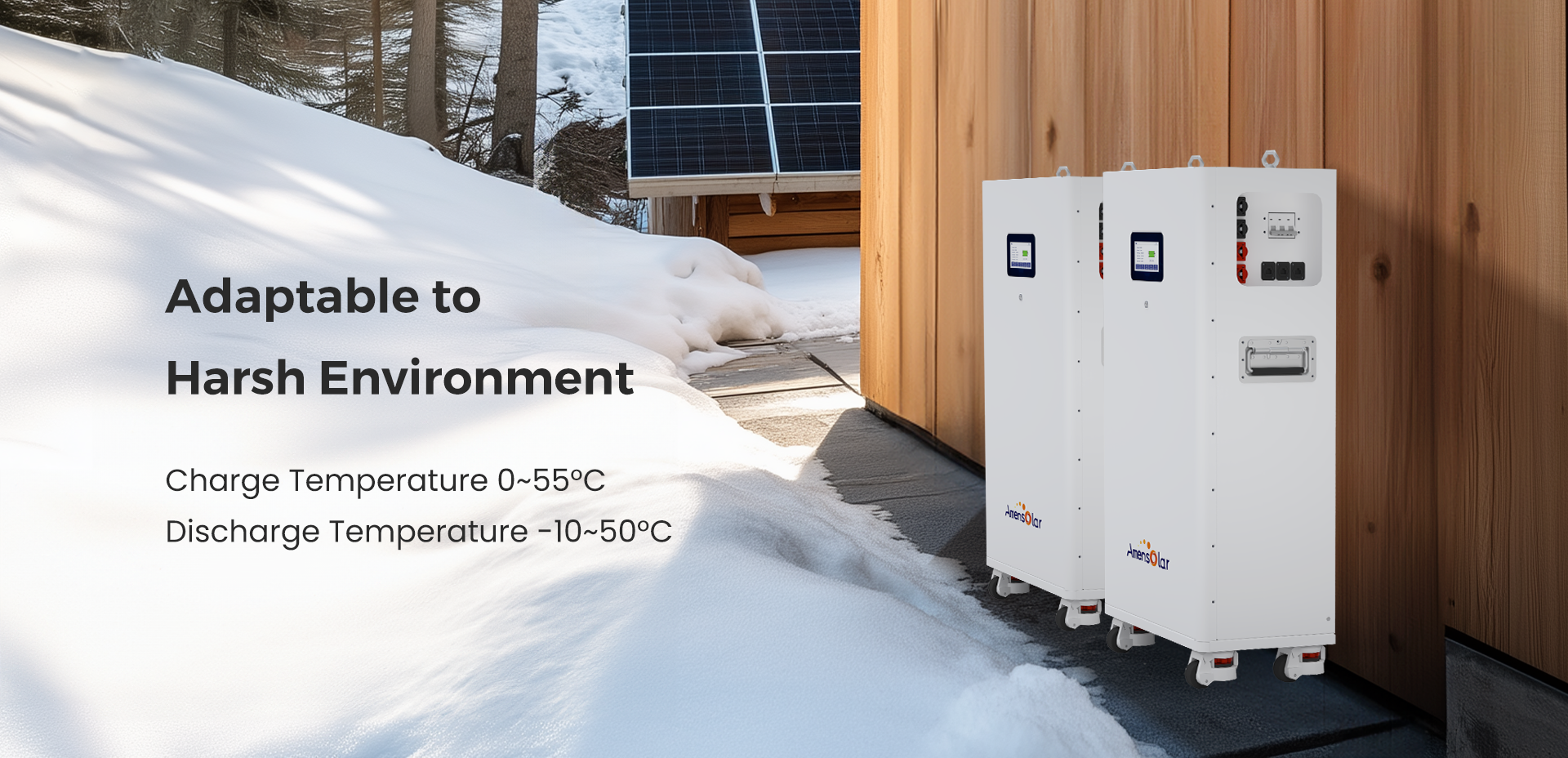

    AMF16000 Temperature

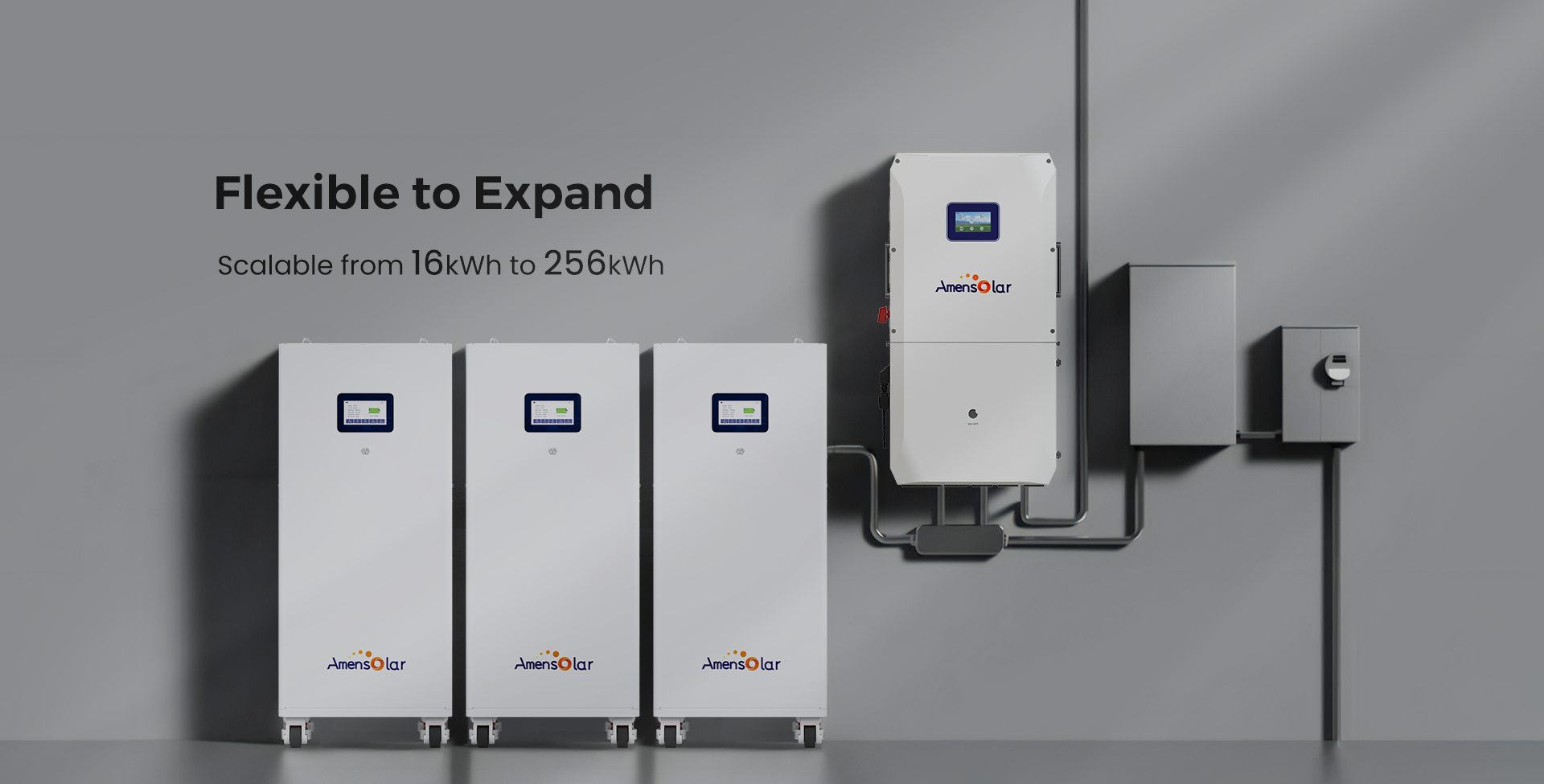

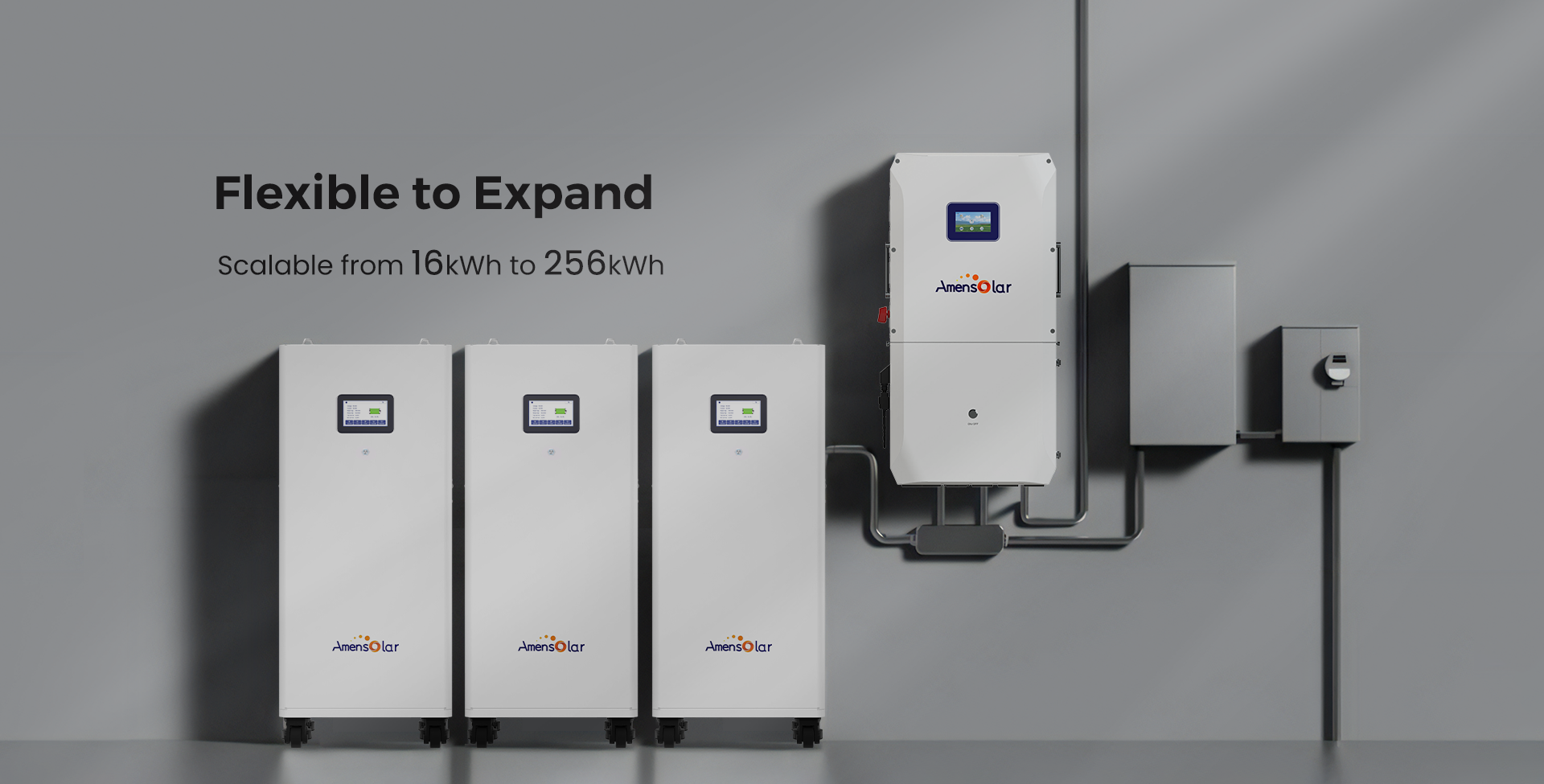

    AMF16000 Parallel
    AMF16000 Advantages

    Product Description

    AMF16000 is a top-notch solar battery designed for versatility and convenience. With its stack-mountable feature and impressive auto DIP addressing function, it’s the perfect solution for diverse energy storage needs. ensuring your customers’ satisfaction and boosting your business growth.

    description-img
    Leading Features
    • 01

      Easy to be installed

      Easy maintenance, flexibility and versatility.

    • 02

      LFP Prismatic Cell

      Current interrupt Device (CID) helps pressure relief and ensures safe and detect controllable LifePo4 Battery.

    • 03

      51.2V low-voltage

      Support 16 sets parallel connection.

    • 04

      BMS

      Real-time control and accurate monitor in single cell voltag, current and temperature, ensure battery safety.

    Certificates

    CUL
    honor-1
    MH66503
    TUV
    UL

    Case Presentation
    AMF16000 Installation Diagram
    AMF16000 Installation Diagram
    AMF16000 Installation Diagram
    AMF16000 Installation Diagram
    AMF16000 Installation Diagram

    Package

    POWER BOX (5)
    POWER BOX (1)
    POWER BOX (2)
    packing-1
    packing
    packing-3
    POWER BOX (3)
    POWER BOX (4)
    Careful packaging:

    We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.

    Secure shipping:

    We partner with trusted logistics providers, ensuring products are well-protected.

    Related Products

    AM5120S  5.12KWH  Rack Mounted LiFePO4 Solar Battery

    AM5120S

    N3H-X8-US 8KW Split Phase Hybrid Solar Inverter

    N3H-X8-US 8KW

    POWER WALL 51.2V 200AH 10.24KWH Wall Mount Solar Battery Amensolar

    POWER WALL 200A

    Model

    AMF16000

    Module Type LFP 16kWh / LV
    Nominal Voltage
    51.2V
    Operating Voltage Range
    44.8~58.4V
    Nominal Capacity
    300Ah
    Nominal Energy (at25°C)
    16kWh
    DOD
    90%
    Charge/Discharge Current
    100A
    Max Charge/Discharge Current
    200A
    Charge Temperature
    200A
    Charge Temperature 0~55℃
    Discharge Temperature
    -10~50℃
    Relative Humidity
    5% – 95%
    Communication Interface
    CAN / RS485
    Enclosure Protection Rating
    IP 52
    Cooling Type
    Natural cooling
    Cycle Life
    ≥8000
    Warranty
    10 years
    Life Span
    20+ Years (25°C)
    Max. Pieces of Parallel
    16
    Dimension (L*W*H)
    277*400*858mm
    Weight
    125±1kg
    Certificates
    IEC61000/CE/UN38.3/MSDS
