120/240V Split Phase Hybrid Inverter

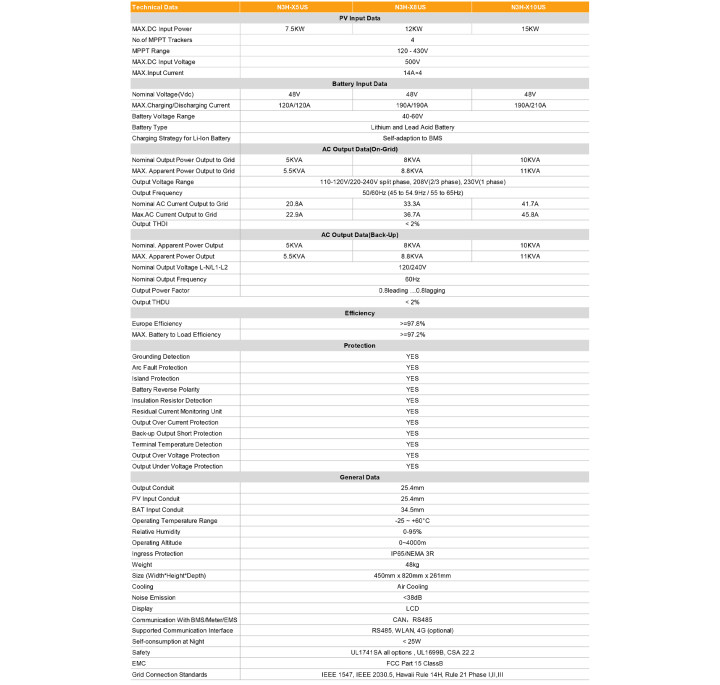

| Technical Data | N3H-X10-US |
| PV Input Data | |
| MAX.DC Input Power | 15KW |
| NO.MPPT Tracker | 4 |
| MPPT Range | 120 – 430V |
| MAX.DC Input Voltage | 500V |
| MAX.Input Current | 14Ax4 |
| Battery Input Data | |
| Nominal voltage (Vdc) | 48V |
| MAX.Charging/Discharging Current | 190A/210A |
| Battery Voltage Range | 40-60V |
| Battery Type | Lithium and Lead Acid Battery |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| AC Output Data(On-Grid) | |
| Nominal output power Output to Grid | 10KVA |
| MAX. Apparent Power Output to Grid | 11KVA |
| Output Voltage Range | 110- 120/220-240V split phase, 208V(2/3 phase), 230V(1 phase) |
| Output Frequency | 50/60Hz (45 to 54.9Hz / 55 to 65Hz) |
| Nominal AC Current Output to Grid | 41.7A |
| Max.AC Current Output to Grid | 45.8A |
| Output Power Factor | 0.8leading …0.8lagging |
| OutPut THDI | < 2% |
| AC Output Data(Back-Up) | |
| Nominal. Apparent Power Output | 10KVA |
| MAX. Apparent Power Output | 11KVA |
| Nominal Output Voltage L-N/L1-L2 | 120/240V |
| Nominal Output Frequency | 60Hz |
| Output THDU | < 2% |
| Efficiency | |
| Europe Efficiency | >=97.8% |
| MAX. Battery to Load Efficiency | >=97.2% |
| Object | Description |
| 01 | BAT inpu/BAT output |
| 02 | WIFI |
| 03 | Communication Pot |
| 04 | CTL 2 |
| 05 | CTL 1 |
| 06 | Load 1 |
| 07 | Ground |
| 08 | PV input |
| 09 | PV output |
| 10 | Generator |
| 11 | Grid |
| 12 | Load 2 |
