Original Manufacturer Wholesale Solar Storage Lithium Battery Supplier
MODEL:
Rack-Mounted Ultra-Thin Lithium Battery 2U Design
| Battery Name | A5120 |
| Certificate Model | YNJB16S100KX – L |
| Battery Type | LiFePo4 |
| Mount Type | Rack Mounted |
| Nominal Voltage (V) | 51.2 |
| Capacity(Ah) | 100 |
| Nominal Energy (KWh) | 5.12 |
| Operating Voltage(V) | 44.8~57.6 |
| Max Charge Current(A) | 100 |
| charging Current(A) | 50 |
| Max Discharge Current(A) | 100 |
| discharging current(A) | 50 |
| charging Temperature | 0C~+55C |
| Discharging Temperature | -20C~+55C |
| Relative Humidity | 5% – 95% |

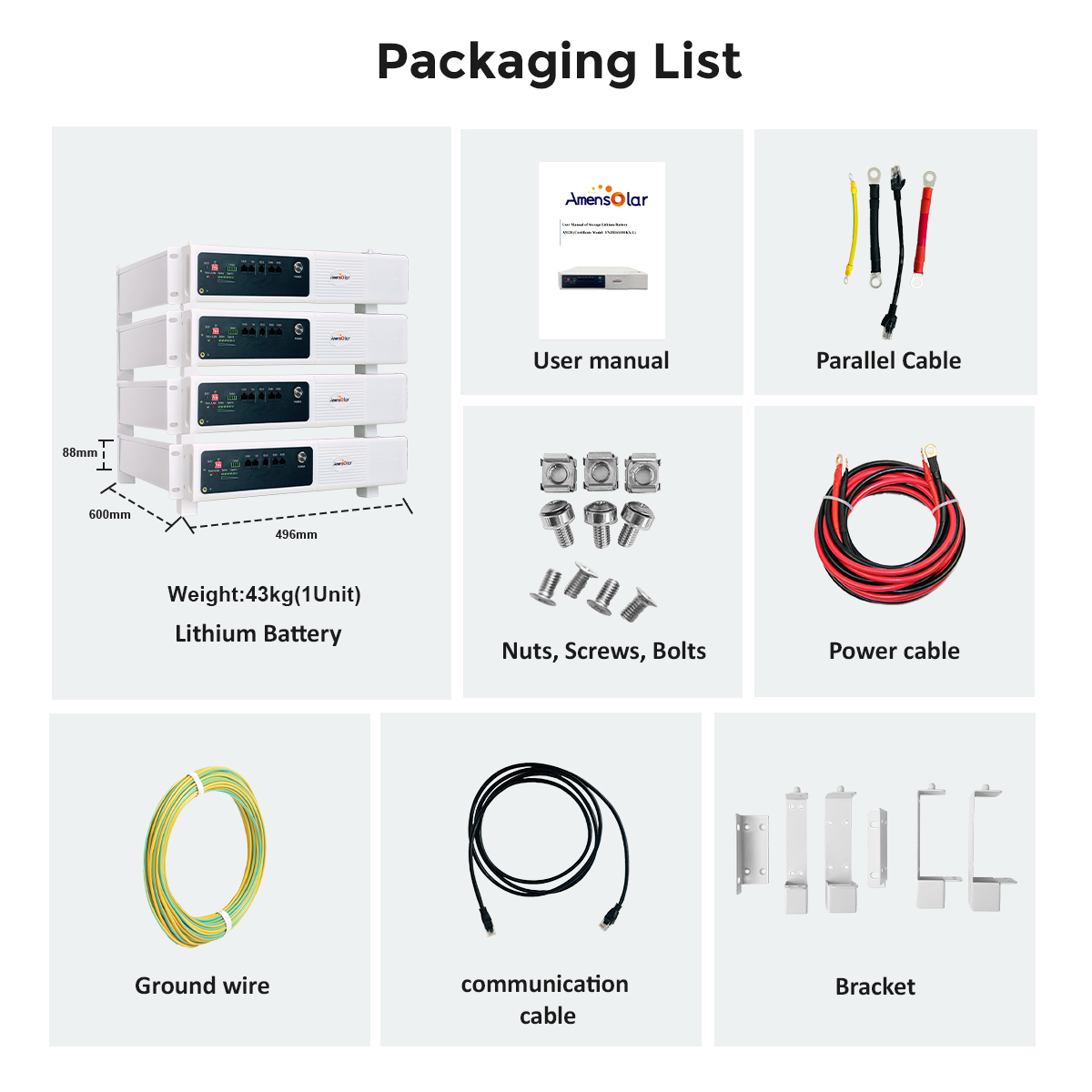

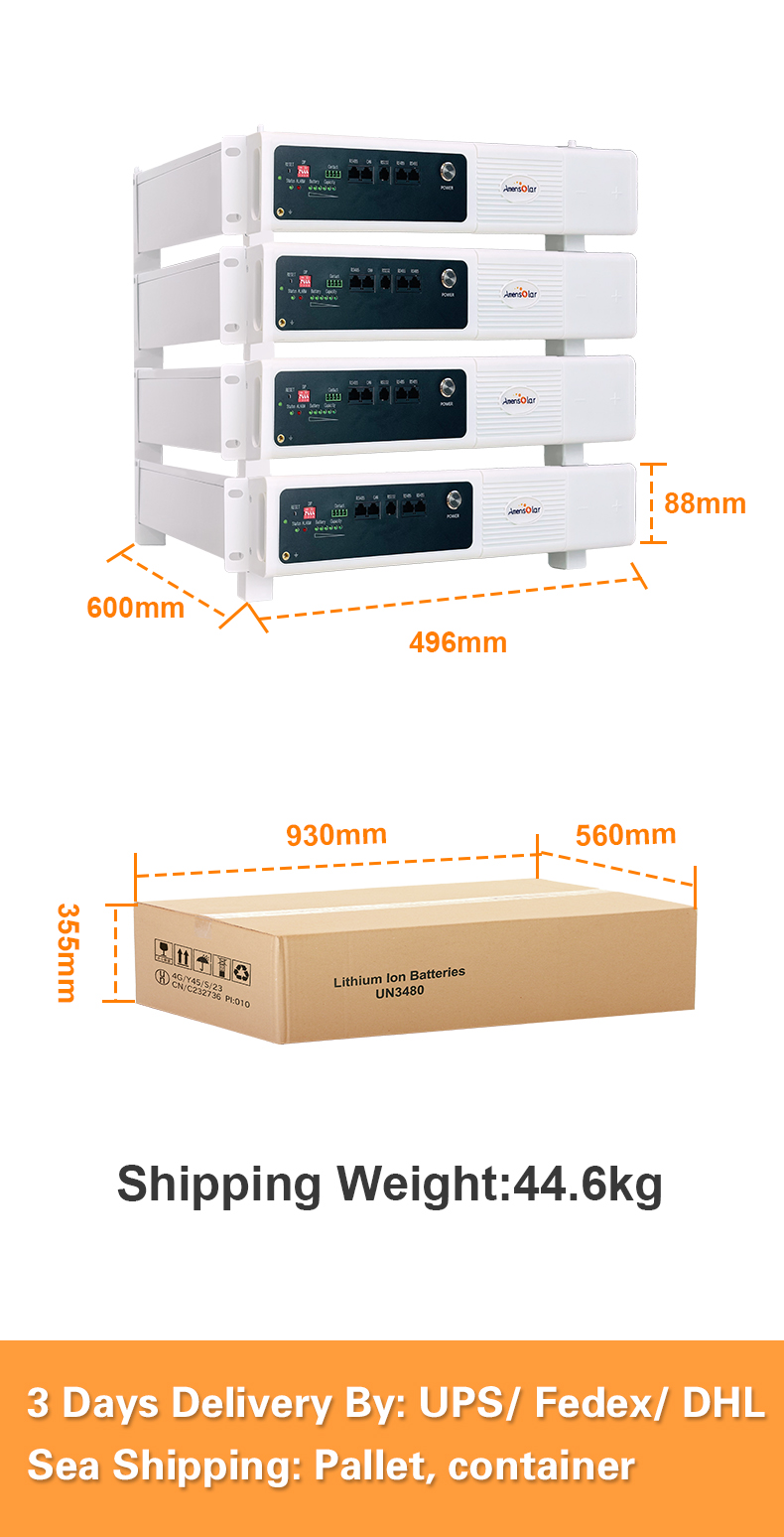

| Dimension(L*W*H mm) | 496*600*88 |
| Weight(KG) | 43±0 .5 |
| Communication | CAN, RS485 |
| Enclosure Protection Rating | IP21 |
| Cooling Type | Natural Cooling |
| Cycles Life | ≥6000 |
| Recommend DOD | 90% |
| Design Life | 20+ Years (25℃@77℉) |
| Safety Standard | UL1973/CE/IEC62619/UN38 .3 |
| Max. Pieces of Parallel | 16 |
| Object | Description |
| 1 | Power Indicator |
| 2 | Ground wire hole |
| 3 | Status Indicator |
| 4 | Alarm Indicator |
| 5 | Battery Energy Indicator |
| 6 | RS485 / CAN Interface |
| 7 | RS232 Interface |
| 8 | RS485 Interface |
| 9 | Power on/off |
| 10 | Negative Terminal |
| 11 | Positive Terminal |
| 12 | Reset |
| 13 | Dip Switch |
| Address | |
| 14 | Dry Contact |
