AML12-200 12.8VL Series Lifepo4 bhatiri
Model:
Rack-yakaiswa Ultra-yakaonda lithium battery 2u dhizaini

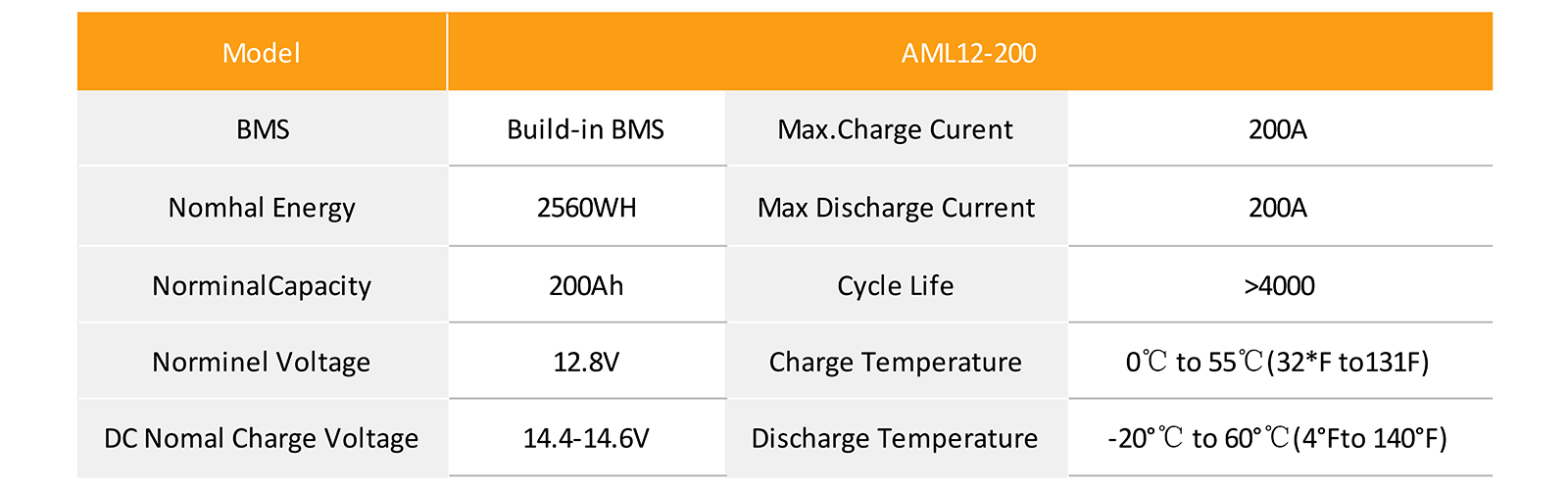

| Modhi | AML12-200 | |||
| Magetsi Paramende | ||||
| Mhando bhatiri | Lifepo4 (Lithium iron Phosphato) | |||
| BMS | Akavakwa-muBMS | |||
| Norminal Energy | 2560WH | |||
| Zvakajairwa | 200ah | |||
| Norminal Voltage | 12.V | |||
| Hupenyu hweCCRCLE | > 4000 | |||
| Charge paramende | ||||
| Dc Warth Charge Voltage | 14.4-14.6v | |||
| Yakakurudzirwa kurongedza ikozvino | <0.2c | |||
| Inobvumidzwa max.charge zvazvino | 200a | |||
| Kubhadharisa kucheka-kubva voltage | 14.6 ± 1VDC | |||
| Charge mode | 0.2c kusvika 14.6v, ipapo 14.6v, muripo ikozvino kusvika 0.02c (CC / CV) | |||
| Kuraswa Paramende | ||||
| Kuenderera mberi kwechidhirowa ikozvino | 0.5c | |||
| Inobvumidzwa max. KuraswaZvazvino | 200a | |||
| Discharge akacheka-kubva voltage | 10V | |||
| Max. Pulse ikozvino discharge | 400A10s | |||
| Zvakatipoteredza & Michina Paramende | ||||
| Kupisa tembiricha | 0 ° C kusvika 55 ° C (32 ° F to131 ° F) | |||
| Kuraswa tembiricha | -20 ° C kusvika 60 ° C (4 ° F to 140 ° F) | |||
| Nzvimbo dzekudzivirira | IP65 | |||
| Chinyorwa cheCents | Abs | |||

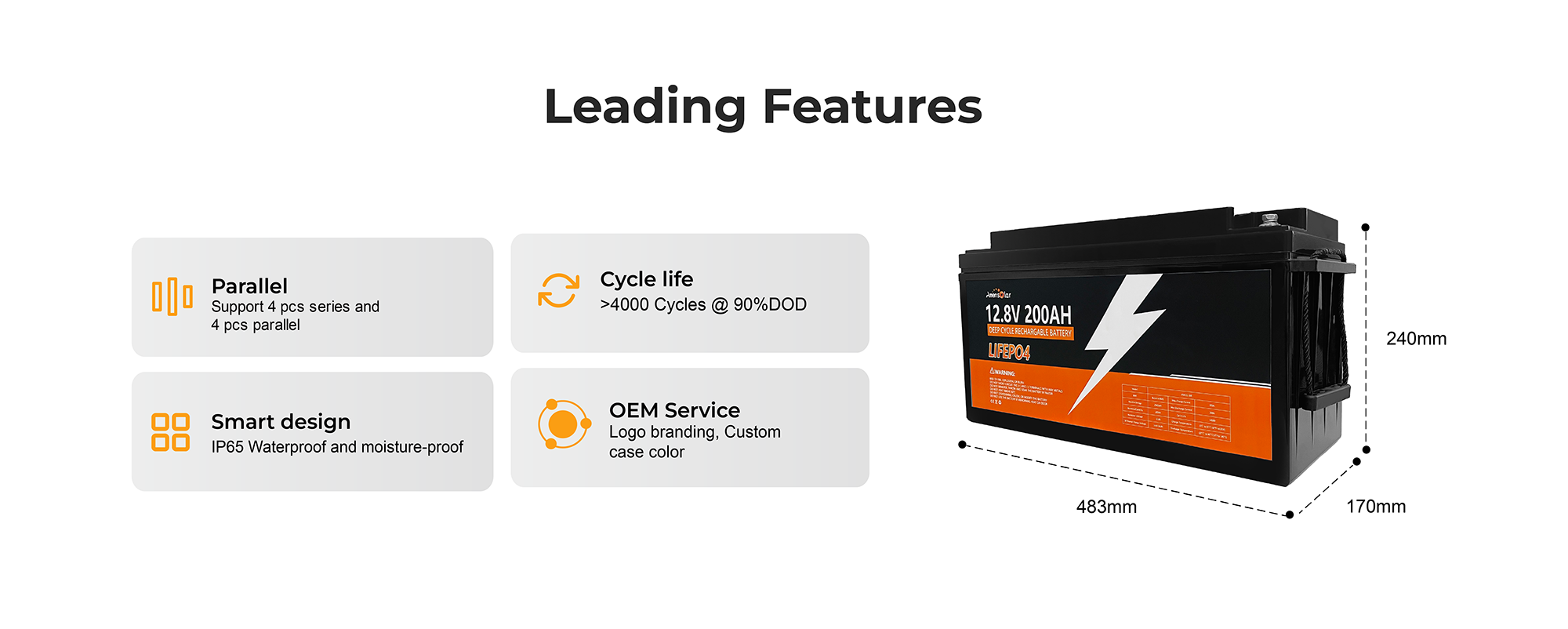

| Zvidimbu (mm) | 483 * 170 * 240 | |||
| Uremu (kg) | 21kg | |||
| Parallel & Series | Tsigira 4 PCS Series uye 4 PCS zvakafanana | |||
